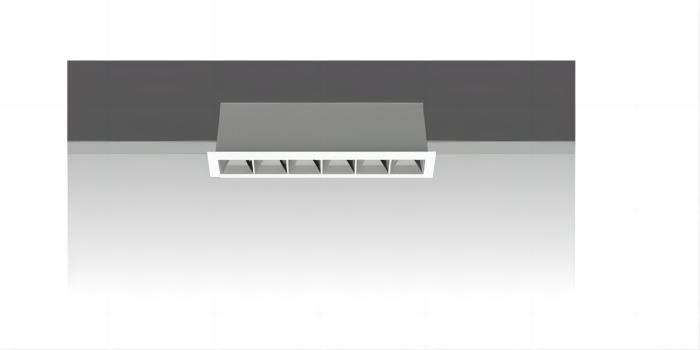

Lighting Effects
Diffuser linear , creat flood light in different length
Applacation Emagery
Home , hotel , resturant , shoppes ,office

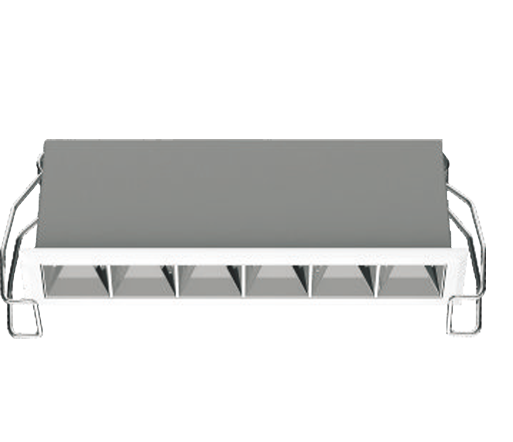

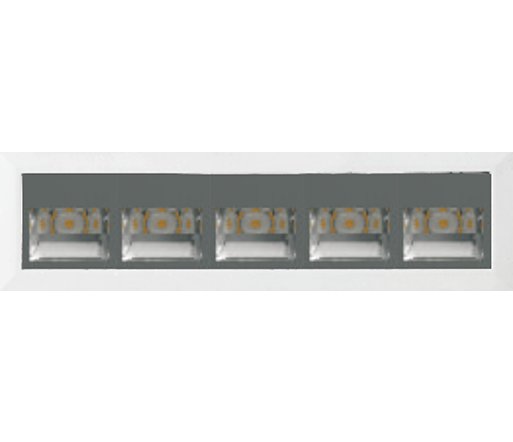

Product Details
·High Ra﹥90, Low SDCM﹤3
·High efficacy, high illuminance
·Glare-free design, perfect light spot and accurate beam
angle, make surroundings of comfortable illumination
·Refined components and design, guarantee a long life
span of over 40,000 hours
·Rotatable horizontal 355° and vertical 90°
·Driver box designed close to rail for a neat and elegant visual feeling
Specification
| Model | Dimension | Cutout | Output Wattage | Input Voltage | Beam Angle | Color Temperature | Luminous Flux | CRI | Dimming |
| LMN0102 | 30.5*30.5*35.6 mm | 26*26 mm | 2W | 100-240V/220-240V 50/60Hz | 15°/ 24° | 2700-6000K | 160lm | >90Ra | No Dim/0-10V/Dali/ZigBee |
| LMN0304 | 68.5*30.5*35.6 mm | 64*26 mm | 4W | 100-240V/220-240V 50/60Hz | 15°/ 24° | 2700-6000K | 320lm | >90Ra | No Dim/0-10V/Dali/ZigBee |
| LMN0405S | 49.5*49.5*35.6 mm | 45*45 mm | 5W | 100-240V/220-240V 50/60Hz | 15°/ 24° | 2700-6000K | 400lm | >90Ra | No Dim/0-10V/Dali/ZigBee |
| LMN0608 | 125.5*30.5*35.6mm | 121*26 mm | 8W | 100-240V/220-240V 50/60Hz | 15°/ 24° | 2700-6000K | 640lm | >90Ra | No Dim/0-10V/Dali/ZigBee |
| LMN1215 | 39.5*30.5*35.6mm | 235*26 mm | 15W | 100-240V/220-240V 50/60Hz | 15°/ 24° | 2700-6000K | 1200lm | >90Ra | No Dim/0-10V/Dali/ZigBee |
| LMN0910S | 68.5*68.5*35.6 mm | 64*64 mm | 10W | 100-240V/220-240V 50/60Hz | 15°/ 24° | 2700-6000K | 800lm | >90Ra | No Dim/0-10V/Dali/ZigBee |
| LMN1615S | 87.5*87.5*35.6 mm | 83*83 mm | 15W | 100-240V/220-240V 50/60Hz | 15°/ 24° | 2700-6000K | 1200lm | >90Ra | No Dim/0-10V/Dali/ZigBee |
| LMN2520S | 105.9*105.9*35.6 mm | 101.5*101.5 mm | 20W | 100-240V/220-240V 50/60Hz | 15°/ 24° | 2700-6000K | 1600lm | >90Ra | No Dim/0-10V/Dali/ZigBee |
