Applacation Emagery
hotel , resturant , shopping mall ,office, corridor,
Product Details

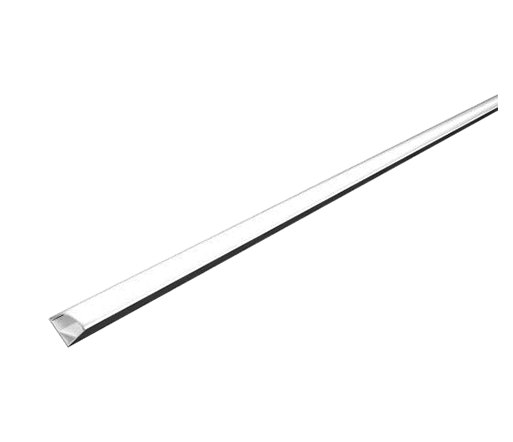

These Surface-mounted linear fixtures are our hot-selling products with a narrow, low profile.

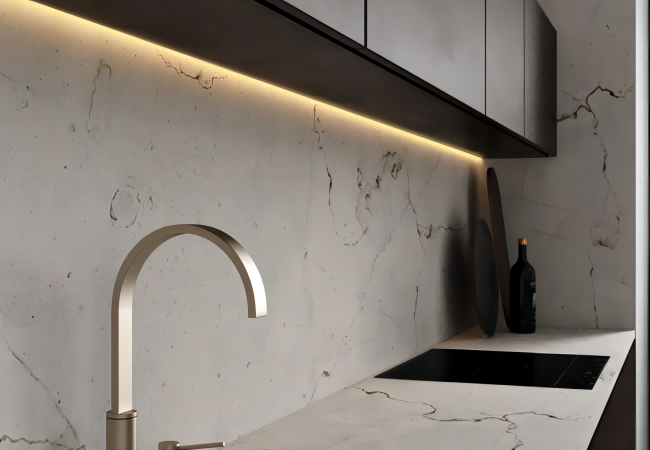

The 110-degree beam angle is ideal for a wide, even spread of light like in cove and wall-washing applications.
They can create clean, modern linear designs for retail stores, commercial buildings and residential interiors.
Some of them can also be used in conjunction with our tiltable stands.
There are includes a choice of clear, frosted or milky diffuser.
Specification
Model | Dimension | Finish color | Output Wattage | Source Current | Beam Angle | Color Temperature | Luminous Flux | CRI | Dimming |
C1616-1000 | L1000 x W11 x H16mm | white/silver/black | 10w | 24VDC | 110° | 2200K-6500K | >100Lm/w | Ra>90 | No Dim/0-10V/Dali/ZigBee |
C1616-1500 | L1500 x W11 x H16mm | white/silver/black | 12.5W | 24VDC | 110° | 2200K-6500K | >100Lm/w | Ra>90 | No Dim/0-10V/Dali/ZigBee |
C1616-2000 | L2000 x W11 x H16mm | white/silver/black | 18W | 24VDC | 110° | 2200K-6500K | >100Lm/w | Ra>90 | No Dim/0-10V/Dali/ZigBee |
