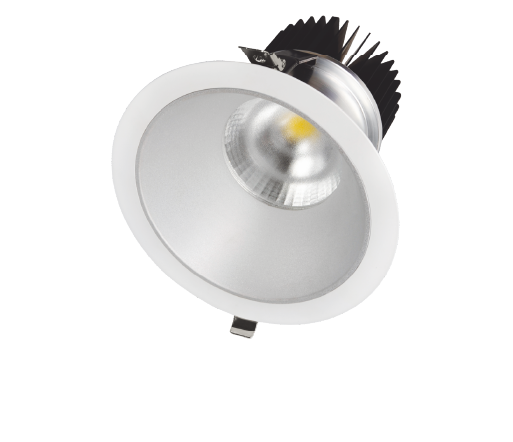

DLC Series Recessed Downlight For High Ceiling

1 2 3

Lighting Effects

Dapibus cras viverra magnis lectus quis placerat vel a.

Applacation Emagery

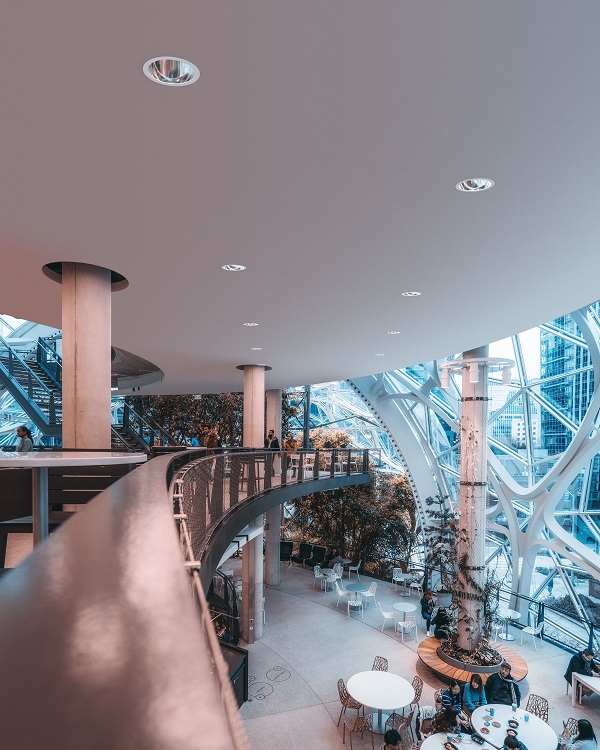

Hotel Lobby , Shopping mall , office , Stations ,and any high ceiling are all vailable .

259283746_2959640757684150_6530372502649669484_n

Product Details

1. High brightness，Low SDCM＜3，low light decline，UGR＜19
2. High efficacy,high illuminance、accurate beam angle makes comfortable illumination atmosphere、Refined components and design
3. guarantee a long lifespan of over 40,000 hours
4. Triac,0-10v,Dali dimmable is available
5. Easy installation,Widey used in Airport,train station,exbition center,hotel lobby,office ect.

Specification

Model	Dimension	Cutout	Output Wattage	Source　 Current	Source voltage	Beam Angle	Color Temperature	Luminous Flux	CRI	Dimming
DLC0415-B	D139 x H128.7mm	Ø 125mm	15W	360mA	220-240V	15°/24°/36°/50°	2.7K/3K/3.5K/4K/5K/6K	1516-1624lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC0420-B	D139 x H128.7mm	Ø 125mm	20W	480mA	220-240V	15°/24°/36°/50°	2.7K/3K/3.5K/4K/5K/6K	2006-1926lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC0425-B	D139 x H128.7mm	Ø 125mm	25W	600mA	220-240V	15°/24°/36°/50°	2.7K/3K/3.5K/4K/5K/6K	2344-2371lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC0430-B	D139 x H128.7mm	Ø 125mm	30W	720mA	220-240V	15°/24°/36°/50°	2.7K/3K/3.5K/4K/5K/6K	2731-2764lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC0435-B	D139 x H148.7mm	Ø 125mm	35W	850mA	220-240V	15°/24°/36°/50°	2.7K/3K/3.5K/4K/5K/6K	3325-3143lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC0440-B	D139 x H148.7mm	Ø 125mm	40W	960mA	220-240V	15°/24°/36°/50°	2.7K/3K/3.5K/4K/5K/6K	3630-3612lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC0455-B	D139 x H163.7mm	Ø 125mm	55W	1300mA	220-240V	15°/24°/36°/50°	2.7K/3K/3.5K/4K/5K/6K	5158-5023lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim

DLC0515-B	D170 x H139.2mm	Ø 155mm	15W	360mA	220-240V	15°/24°/36°/55°	2.7K/3K/3.5K/4K/5K/6K	1525-1667lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC0520-B	D170 x H139.2mm	Ø 155mm	20W	480mA	220-240V	15°/24°/36°/55°	2.7K/3K/3.5K/4K/5K/6K	1987-2055lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC0525-B	D170 x H139.2mm	Ø 155mm	25W	600mA	220-240V	15°/24°/36°/55°	2.7K/3K/3.5K/4K/5K/6K	2407-2535lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC0530-B	D170 x H139.2mm	Ø 155mm	30W	720mA	220-240V	15°/24°/36°/55°	2.7K/3K/3.5K/4K/5K/6K	2728-2855lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC0535-B	D170 x H159.2mm	Ø 155mm	35W	850mA	220-240V	15°/24°/36°/55°	2.7K/3K/3.5K/4K/5K/6K	3276-3362lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC0545-B	D170 x H159.2mm	Ø 155mm	45W	960mA	220-240V	15°/24°/36°/55°	2.7K/3K/3.5K/4K/5K/6K	3710-3702lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC0555-B	D170 x H174.2mm	Ø 155mm	55W	1300mA	220-240V	15°/24°/36°/55°	2.7K/3K/3.5K/4K/5K/6K	5295-5217lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim

DLC0622-B	D190 x H153mm	Ø 175mm	22W	520mA	220-240V	25°/32°/45°/50°	2.7K/3K/3.5K/4K/5K/6K	2130-2170lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC0628-B	D190 x H153mm	Ø 175mm	28W	700mA	220-240V	25°/32°/45°/50°	2.7K/3K/3.5K/4K/5K/6K	2690-2700lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC0638-B	D190 x H168mm	Ø 175mm	38W	900mA	220-240V	25°/32°/45°/50°	2.7K/3K/3.5K/4K/5K/6K	3660-3830lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC0650-B	D190 x H188mm	Ø 175mm	50W	1200mA	220-240V	25°/32°/45°/50°	2.7K/3K/3.5K/4K/5K/6K	4840-4790lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC0660-B	D190 x H208mm	Ø 175mm	60W	1500mA	220-240V	25°/32°/45°/50°	2.7K/3K/3.5K/4K/5K/6K	5570-5440lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC0670-B	D190 x H208mm	Ø 175mm	70W	1700mA	220-240V	25°/32°/45°/50°	2.7K/3K/3.5K/4K/5K/6K	5310-6370lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC0680-B	D190 x H223mm	Ø 175mm	80W	1900mA	220-240V	25°/32°/45°/50°	2.7K/3K/3.5K/4K/5K/6K	6866-7849lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim

DLC0822-B	D230 x H157mm	Ø 210mm	22W	520mA	220-240V	25°/36°/45°/55°	2.7K/3K/3.5K/4K/5K/6K	2130-2070lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC0828-B	D230 x H157mm	Ø 210mm	28W	700mA	220-240V	25°/36°/45°/55°	2.7K/3K/3.5K/4K/5K/6K	2710-2800lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC0838-B	D230 x H172mm	Ø 210mm	38W	900mA	220-240V	25°/36°/45°/55°	2.7K/3K/3.5K/4K/5K/6K	3860-3760lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC0850-B	D230 x H192mm	Ø 210mm	50W	1200mA	220-240V	25°/36°/45°/55°	2.7K/3K/3.5K/4K/5K/6K	5150-5040lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC0860-B	D230 x H212mm	Ø 210mm	60W	1500mA	220-240V	25°/36°/45°/55°	2.7K/3K/3.5K/4K/5K/6K	5690-5580lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC0870-B	D230 x H212mm	Ø 210mm	70W	1700mA	220-240V	25°/36°/45°/55°	2.7K/3K/3.5K/4K/5K/6K	5740-6970lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC0880-B	D230 x H227mm	Ø 210mm	80W	1900mA	220-240V	25°/36°/45°/55°	2.7K/3K/3.5K/4K/5K/6K	6560-7695lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC08100-B	D230 x H267mm	Ø 210mm	100W	2400mA	220-240V	25°/36°/45°/55°	2.7K/3K/3.5K/4K/5K/6K	9160-10089lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim

DLC1022-B	D280 x H188mm	Ø 240mm	22W	520mA	220-240V	25°/32°/40°	2.7K/3K/3.5K/4K/5K/6K	2130-2210lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC1028-B	D280 x H188mm	Ø 240mm	28W	700mA	220-240V	25°/32°/40°	2.7K/3K/3.5K/4K/5K/6K	2730-2800lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC1038-B	D280 x H203mm	Ø 240mm	38W	900mA	220-240V	25°/32°/40°	2.7K/3K/3.5K/4K/5K/6K	3740-3980lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC1050-B	D280 x H223mm	Ø 240mm	50W	1200mA	220-240V	25°/32°/40°	2.7K/3K/3.5K/4K/5K/6K	4810-5130lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC1060-B	D280 x H243mm	Ø 240mm	60W	1500mA	220-240V	25°/32°/40°	2.7K/3K/3.5K/4K/5K/6K	5410-5710lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC1070-B	D280 x H243mm	Ø 240mm	70W	1700mA	220-240V	25°/32°/40°	2.7K/3K/3.5K/4K/5K/6K	5710-6820lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC1080-B	D280 x H258mm	Ø 240mm	80W	1900mA	220-240V	25°/32°/40°	2.7K/3K/3.5K/4K/5K/6K	6820-7294lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC10100-B	D280 x H298mm	Ø 240mm	100W	2400mA	220-240V	25°/32°/40°	2.7K/3K/3.5K/4K/5K/6K	8506-9258lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC1022-D	D280 x H188mm	Ø 240mm	22W	520mA	220-240V	25°/45°/36°/55°/80°	2.7K/3K/3.5K/4K/5K/6K	2270-2390lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC1028-D	D280 x H188mm	Ø 240mm	28W	700mA	220-240V	25°/45°/36°/55°/80°	2.7K/3K/3.5K/4K/5K/6K	2860-3020lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC1038-D	D280 x H203mm	Ø 240mm	38W	900mA	220-240V	25°/45°/36°/55°/80°	2.7K/3K/3.5K/4K/5K/6K	3910-4320lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC1050-D	D280 x H223mm	Ø 240mm	50W	1200mA	220-240V	25°/45°/36°/55°/80°	2.7K/3K/3.5K/4K/5K/6K	4760-5650lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC1060-D	D280 x H243mm	Ø 240mm	60W	1500mA	220-240V	25°/45°/36°/55°/80°	2.7K/3K/3.5K/4K/5K/6K	5190-6300lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC1070-D	D280 x H243mm	Ø 240mm	70W	1700mA	220-240V	25°/45°/36°/55°/80°	2.7K/3K/3.5K/4K/5K/6K	6590-7510lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC1080-D	D280 x H258mm	Ø 240mm	80W	1900mA	220-240V	25°/45°/36°/55°/80°	2.7K/3K/3.5K/4K/5K/6K	7390-8010lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
DLC10100-D	D280 x H298mm	Ø 240mm	100W	2400mA	220-240V	25°/45°/36°/55°/80°	2.7K/3K/3.5K/4K/5K/6K	8510-8752lm	>90Ra	on-off / Triac dim/ 0-10V dim / Dali dim
