Lighting Effects
Wide beam angle 84 degrees , IP40 protection grade , available for office , corridor ,shopping mall ,showroom

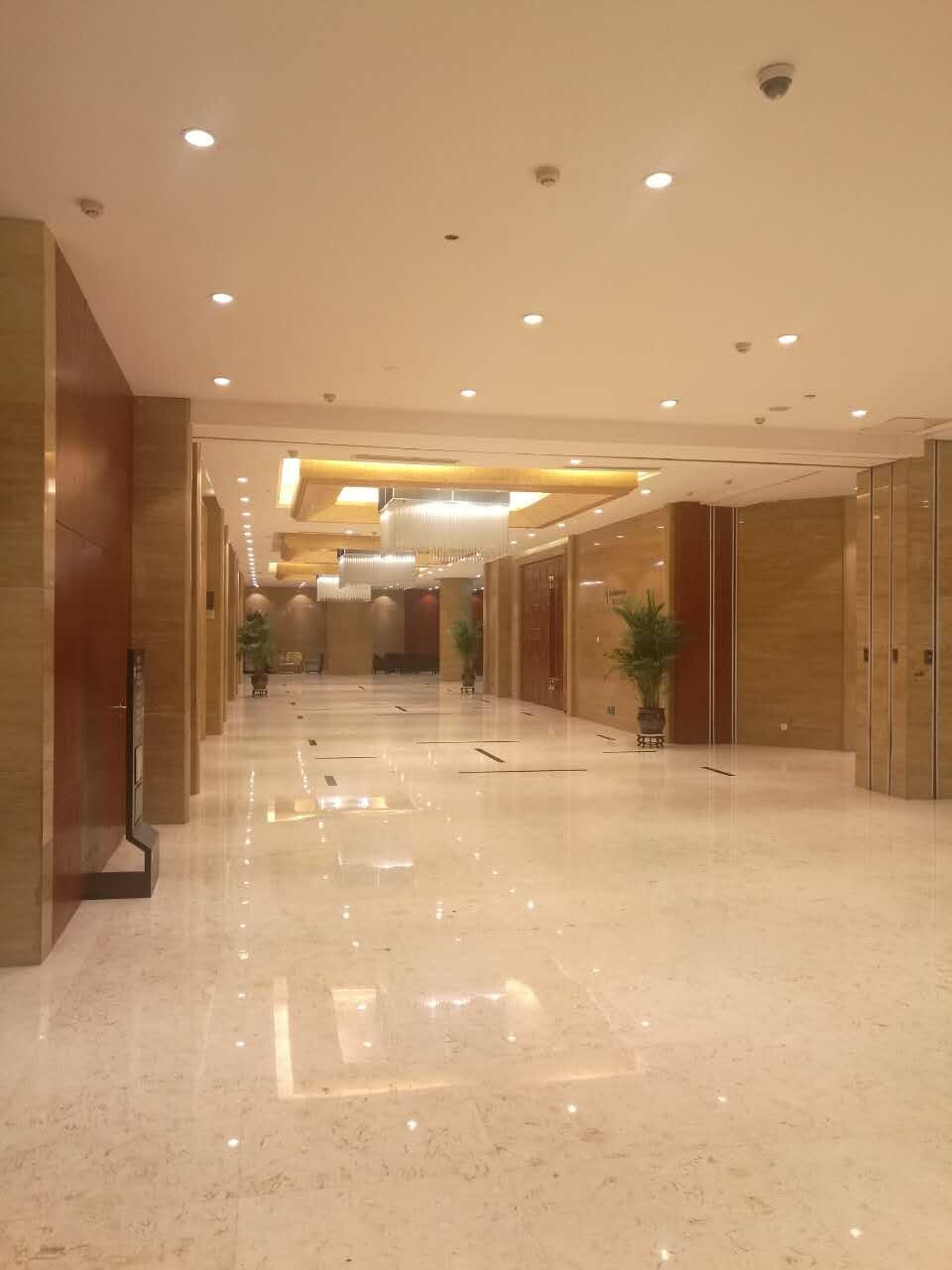

Applacation Emagery
Wide beam angle 84 degrees , IP40 protection grade , available Hotel lobby , office , corridor ,shopping mall ,showroom
Product Details
-
- High brightness，Low SDCM＜3，low light decline
- High efficacy,high illuminance、accurate beam angle makes comfortable illumination atmosphere、Refined components and design
- guarantee a long lifespan of over 40,000 hours
- Triac,0-10v,Dali dimmable is available
- Easy installation,Widey used in Airport,train station,exbition center,hotel lobby,office ect.
Specification
| Model | Dimension | Cutout size | Output Wattage | Source Current | Source voltage | Beam Angle | Color Temperature | Luminous Flux | CRI | Dimming |
| DLD0416B | ∅145*H92mm | ∅125mm | 16W | 400mA | 36V | 84° | 2700K-6000K | 1280-1430lm | >90Ra | on-off /0-10V dim /Triac dim/Dali |
| DLD0420B | ∅145*H92mm | ∅125mm | 20W | 500mA | 36V | 84° | 2700K-6000K | 1580-1700lm | >90Ra | on-off /0-10V dim /Triac dim/Dali |
| DLD0425B | ∅145*H92mm | ∅125mm | 25W | 600mA | 36V | 84° | 2700K-6000K | 1890-2040lm | >90Ra | on-off /0-10V dim /Triac dim/Dali |
| DLD0618B | ∅200*H110mm | ∅175mm | 18W | 550mA | 27V | 84° | 2700K-6000K | 1450-1670lm | >90Ra | on-off /0-10V dim /Triac dim/Dali |
| DLD0625B | ∅200*H110mm | ∅175mm | 25W | 650mA | 33V | 84° | 2700K-6000K | 2020-2300lm | >90Ra | on-off /0-10V dim /Triac dim/Dali |
| DLD0632B | ∅200*H110mm | ∅175mm | 32W | 750mA | 36V | 84° | 2700K-6000K | 2800-3000lm | >90Ra | on-off /0-10V dim /Triac dim/Dali |
| DLD0825B | ∅230*H118mm | ∅215mm | 25W | 650mA | 33V | 84° | 2700K-6000K | 2130-2400lm | >90Ra | on-off /0-10V dim /Triac dim/Dali |
| DLD0832B | ∅230*H118mm | ∅215mm | 32W | 750mA | 36V | 84° | 2700K-6000K | 2960-3160lm | >90Ra | on-off /0-10V dim /Triac dim/Dali |
| DLD0845B | ∅230*H118mm | ∅215mm | 45W | 1100mA | 36V | 84° | 2700K-6000K | 3910-4220lm | >90Ra | on-off /0-10V dim /Triac dim/Dali |
