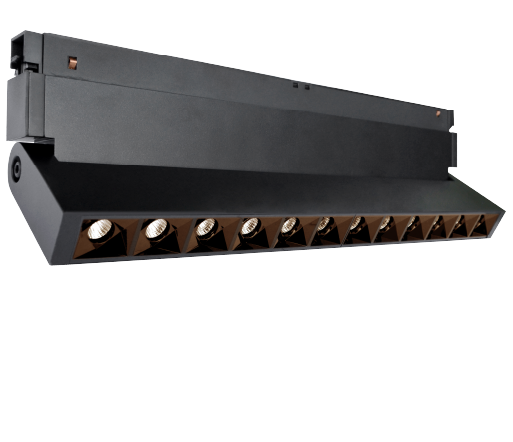

LED Magnetic Gimbal Accent Light SMGS 4.0

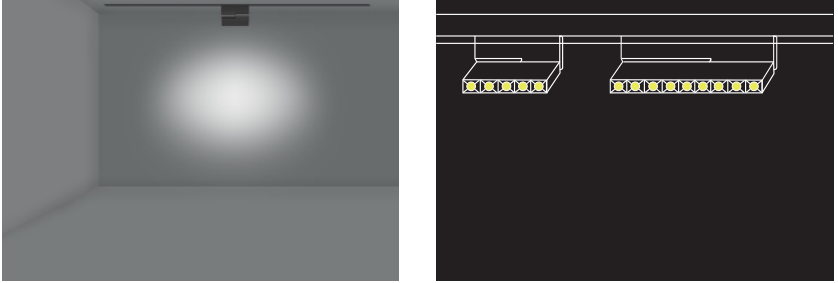

Lighting Effects

Gimbal Accent light linear in different length

Home , hotel , resturant , shoppes ,office

Low voltage 48V magnetic system with professional luminaires for commercial and residential applications. The track is designed for ceiling, wallor pendant application. It is 35mm wide, Perfect for retail and hospitality environments. The light is aimed and uses our patented Opti Beam technology.
The light hold into track by magnetic and safety lock. No wiring to save installation charge.
Smart control system in booth wire system DALI,0-10V&wireless Ziggbee 2.4G dimmable and CCT charges are all available.

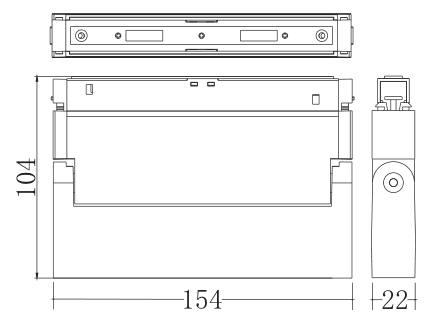

Model	Finish color	Dimension	Wattage	Current	Voltage	Beam Angle	Color Temperature	Luminous Flux	CRI	Dimming
SMGS0606	black/white	L154W22H43mm	6*1W	125mA	48VDC	15/28/41°	2700K-6500K	420lm	>90Ra	on-off /0-10V dim /Zigbee dim/DALI dim
SMGS0612	black/white	L154W22H43mm	10W	208mA	48VDC	13/30/45°	2700K-6500K	836lm	>90Ra	on-off /0-10V dim /Zigbee dim/DALI dim
SMGS1212	black/white	L294W22H43mm	12W	250mA	48VDC	15/28/41°	2700K-6500K	800lm	>90Ra	on-off /0-10V dim /Zigbee dim/DALI dim
SMGS1224	black/white	L294W22H43mm	20W	416mA	48VDC	13/30/45°	2700K-6500K	1560lm	>90Ra	on-off /0-10V dim /Zigbee dim/DALI dim
