Linear profile Surface mounted - KWT LED

Linear profile Surface mounted

1-33(1)

1-4(1)

1-5(1)

0005(1)

Lighting Effects

Diffuser linear , creat flood light in different length

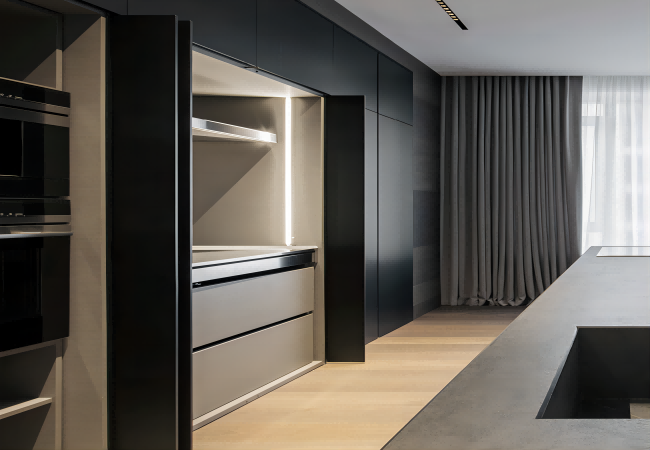

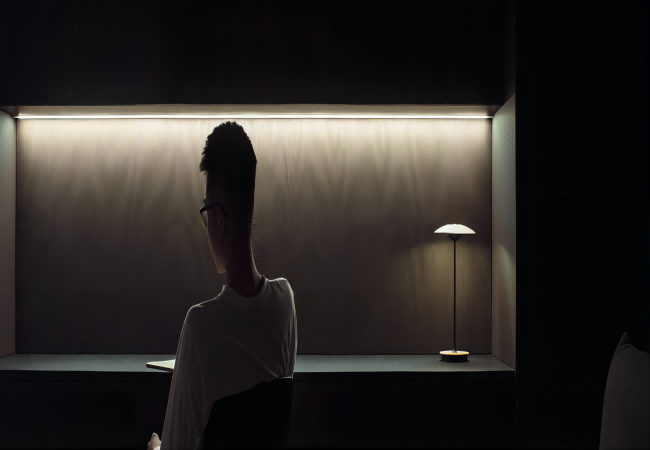

Applacation Emagery

hotel , resturant , shopping mall ,office， corridor,

0003(1)

Product Details

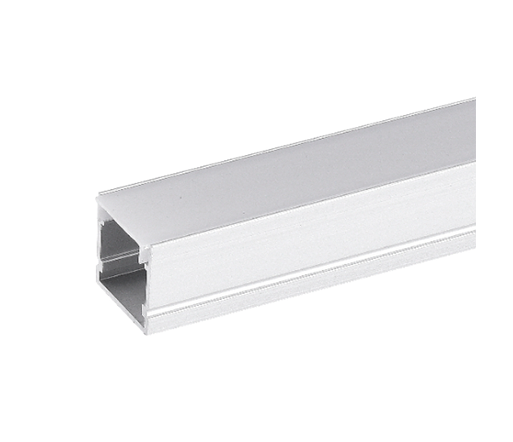

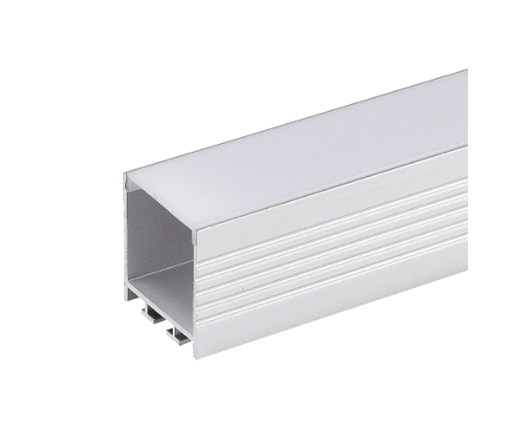

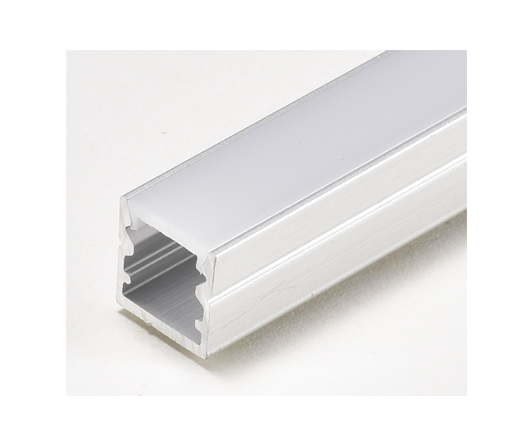

These Surface-mounted linear fixtures are our hot-selling products with a narrow, low profile.
The 110-degree beam angle is ideal for a wide, even spread of light like in cove and wall-washing applications.
They can create clean, modern linear designs for retail stores, commercial buildings and residential interiors.
Some of them can also be used in conjunction with our tiltable stands.
There are includes a choice of clear, frosted or milky diffuser.

Specification

Model	Dimension	Finish color	Output Wattage	Source Current	Beam Angle	Color Temperature	Luminous Flux	CRI	Dimming
M1010-1000	L1000 x W8.6 x H10mm	white/silver/black	10W	24VDC	110°	2200K-6500K	＞100Lm/w	Ra＞90	No Dim/0-10V/Dali/ZigBee
M1010-1500	L1500 x W8.6 x H10mm	white/silver/black	12.5W	24VDC	110°	2200K-6500K	＞100Lm/w	Ra＞90	No Dim/0-10V/Dali/ZigBee
M1010-2000	L2000 x W8.6 x H10mm	white/silver/black	18W	24VDC	110°	2200K-6500K	＞100Lm/w	Ra＞90	No Dim/0-10V/Dali/ZigBee
M2020-1000	L1000 x W20 x H20mm	white/silver/black	20W	24VDC	110°	2700K-6500K	＞100Lm/w	Ra＞90	No Dim/0-10V/Dali/ZigBee
M2020-1500	L1500 x W20 x H20mm	white/silver/black	30W	24VDC	110°	2700K-6500K	＞100Lm/w	Ra＞90	No Dim/0-10V/Dali/ZigBee
M2020-2000	L2000 x W20 x H20mm	white/silver/black	40W	24VDC	110°	2700K-6500K	＞100Lm/w	Ra＞90	No Dim/0-10V/Dali/ZigBee
M3535-1000	L1000 x W35 x H35mm	white/silver/black	24W	24VDC	110°	2700K-6500K	＞100Lm/w	Ra＞90	No Dim/0-10V/Dali/ZigBee
M3535-1500	L1500 x W35x H35mm	white/silver/black	36W	24VDC	110°	2700K-6500K	＞100Lm/w	Ra＞90	No Dim/0-10V/Dali/ZigBee
M3535-2000	L2000 x W35 x H35mm	white/silver/black	48W	24VDC	110°	2700K-6500K	＞100Lm/w	Ra＞90	No Dim/0-10V/Dali/ZigBee
