Lighting Effects
Diffuser linear , creat flood light in different length
Applacation Emagery
Home , hotel , resturant , shoppes ,office

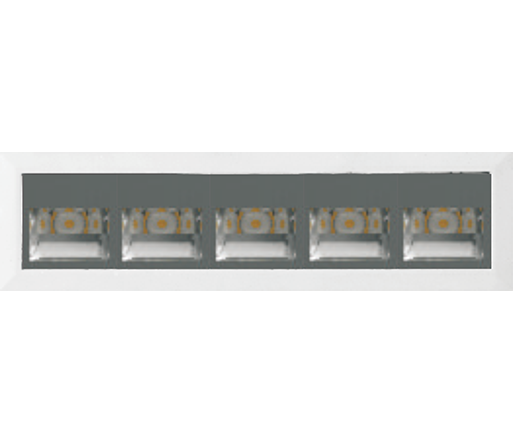

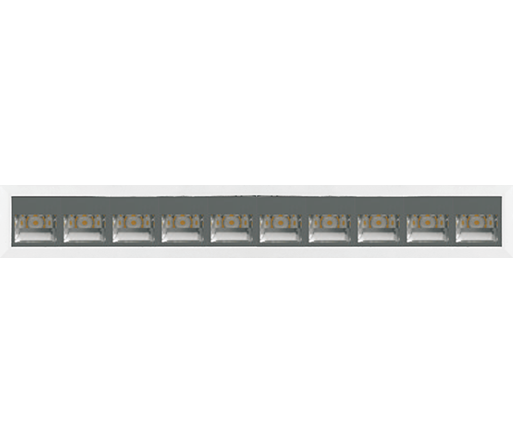

Product Details
High brightness, low light decline
Owns unique and attractive design
Creat a circle of light from a line of LED downlight
Anarrow line ofnano LED downlights for pure minimalism
Superiorglare control for high performance and visual comfort
The installation is easy and safe
Specification
| Model | finish color | Dimension | Output Wattage | Source Current | Source voltage | Beam Angle | Color Temperature | Luminous Flux | CRI | Dimming |
| SMLL3007 | black/white | L294*W22*H43mm | 7W | 145mA | 48VDC | 110° | 2700K/3000K/4000K/5000K | 480lm | >90Ra | on-off /0-10V dim /Zigbee dim/DALI dim |
| SMLL3015 | black/white | L308*W288*H43mm | 15W | 313mA | 48VDC | 110° | 2700K/3000K/ 4000K/5000K | 950lm | >90Ra | on-off /0-10V dim /Zigbee dim/DALI dim |
| SMLL6015 | black/white | L574*W22*H43mm | 15W | 313mA | 48VDC | 110° | 2700K/3000K/4000K/5000K | 1050lm | >90Ra | on-off /0-10V dim /Zigbee dim/DALI dim |
| SMLL9022 | black/white | L854*W22*H43mm | 22W | 458mA | 48VDC | 110° | 2700K/3000K/4000K/5000K | 1550lm | >90Ra | on-off /0-10V dim /Zigbee dim/DALI dim |
| SMLL12030 | black/white | L1131*W22*H43mm | 30W | 625mA | 48VDC | 110° | 2700K/3000K/4000K/5000K | 2100lm | >90Ra | on-off /0-10V dim /Zigbee dim/DALI dim |
