Lighting Effects
Diffuser linear , creat flood light in different length

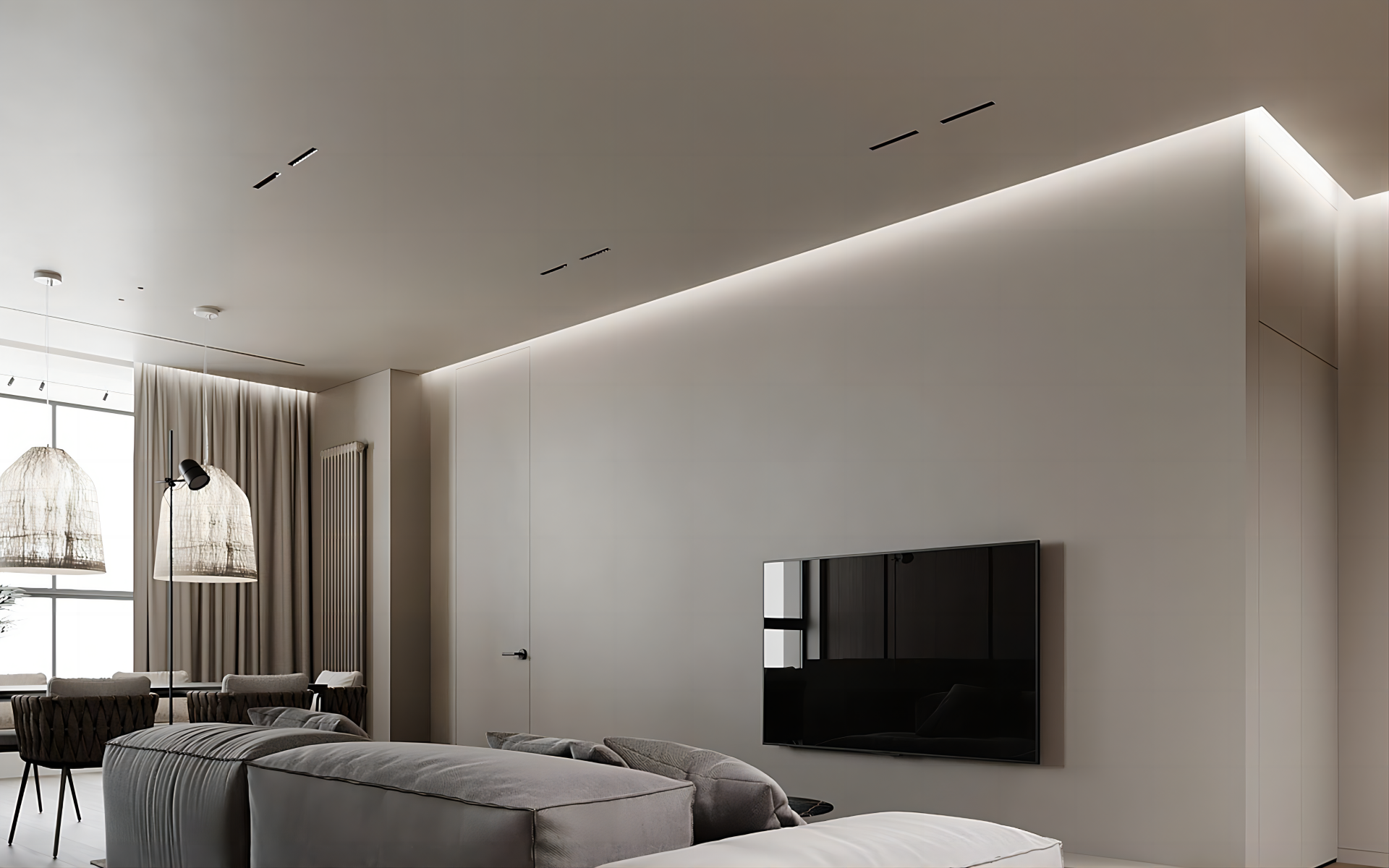

Applacation Emagery
Home , hotel , resturant , shoppes ,office

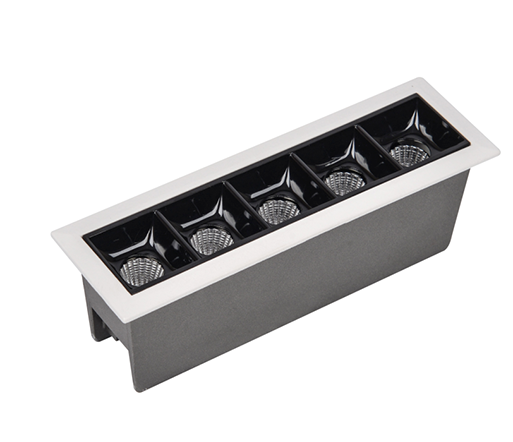

Product Details
High brightness, low light decline
Owns unique and attractive design
Creat a circle of light from a line of LED downlight
Anarrow line ofnano LED downlights for pureminimalism
Superiorglare control for high performance and visualcomfort
The installation is easy and safe
Specification
| Model | Dimension | Cutout | Output Wattage | Source Current | Source voltage | Beam Angle | Color Temperature | Luminous Flux | CRI | Dimming |
| LTD-0102 | L45*W45mm | L37*W37mm | 2W | 600mA | 3V | 15°/30°/45° | 2700K/3000K/4000K | 141lm | >90Ra | on-off /0-10V dim/Triac dim/DALI dim |
| LTD-0204 | L75*W45mm | L68*W37mm | 4W | 600mA | 6V | 15°/30°/45° | 2700K/3000K/4000K | 268lm | >90Ra | on-off /0-10V dim/Triac dim/DALI dim |
| LTD-0510 | L147*W45mm | L140*W37mm | 10W | 600mA | 15V | 15°/30°/45° | 2700K/3000K/4000K | 708lm | >90Ra | on-off /0-10V dim/Triac dim/DALI dim |
| LTD-1020 | L280*W45mm | L273*W37mm | 20W | 600mA | 30V | 15°/30°/45° | 2700K/3000K/4000K | 1536lm | >90Ra | on-off /0-10V dim/Triac dim/DALI dim |
| LTD-1530 | L413*W45mm | L405*W37mm | 30W | 600mA | 45V | 15°/30°/45° | 2700K/3000K/4000K | 3018lm | >90Ra | on-off /0-10V dim/Triac dim/DALI dim |
| LTD-0408 | 74.8*74.8*50mm | 67*67mm | 8W | 600mA | 15°/30°/45° | 2700K/3000K/4000K | 640lm | >90Ra | on-off /0-10V dim/Triac dim/DALI dim | |
| LTD-0910 | 104.8*104.8 | 97*97mm | 18W | 600mA | 15°/30°/45° | 2700K/3000K/4000K | 1440lm | >90Ra | on-off /0-10V dim/Triac dim/DALI dim |
