LTR recessed Linear Lights

Lighting Effects

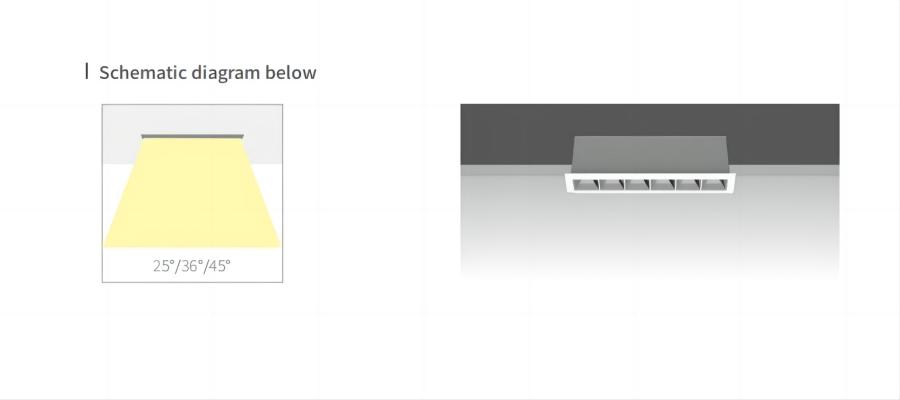

Diffuser linear , creat flood light in different length

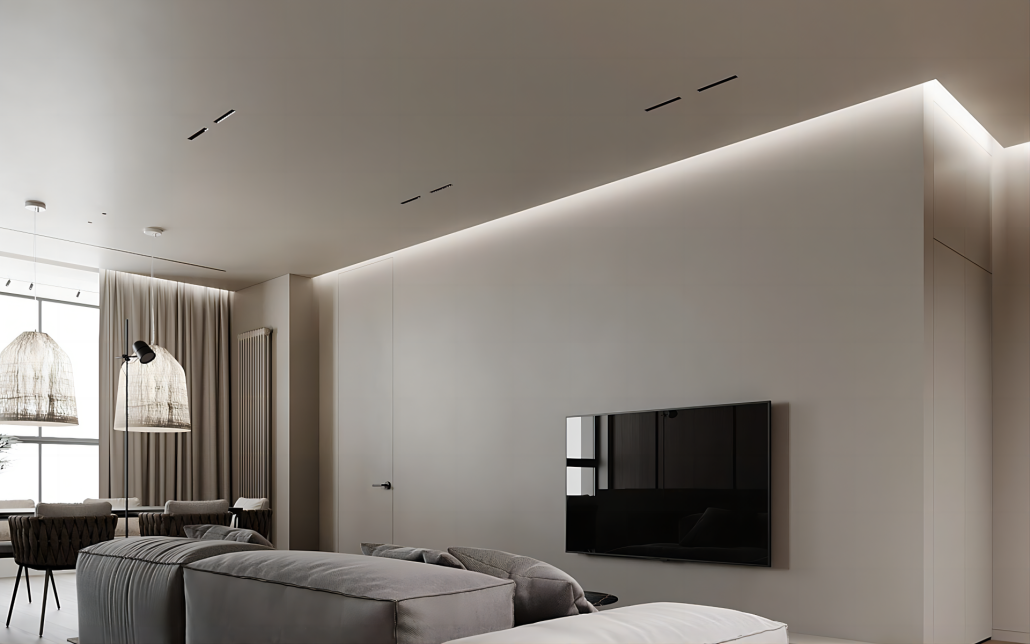

Applacation Emagery

Home , hotel , resturant , shoppes ,office

Product Details

High brightness, low light decline
Owns unique and attractive design
Creat a circle of light from a line of LED downlight
Anarrow line ofnano LED downlights for pureminimalism
Superiorglare control for high performance and visualcomfort
The installation is easy and safe

Specification

Model	Dimension	Cutout	Output Wattage	Source　 Current	Source voltage	Beam Angle	Color Temperature	Luminous Flux	CRI	Dimming
LTR-0102	L41*W72mm	L42*W41mm	2W	600mA	3V	15°/30°/45°	2700K/3000K/4000K	141lm	>90Ra	on-off /0-10V dim/Triac dim/DALI dim
LTR-0204	L71*W72mm	L72*W41mm	4W	600mA	6V	15°/30°/45°	2700K/3000K/4000K	279lm	>90Ra	on-off /0-10V dim/Triac dim/DALI dim
LTR-0510	L143*W72mm	L145*W41mm	10W	600mA	15V	15°/30°/45°	2700K/3000K/4000K	730lm	>90Ra	on-off /0-10V dim/Triac dim/DALI dim
LTR-1020	L276*W72mm	L277*W41mm	20W	600mA	30V	15°/30°/45°	2700K/3000K/4000K	1445lm	>90Ra	on-off /0-10V dim/Triac dim/DALI dim
LTR-1530	L408*W72mm	L410*W41mm	30W	600mA	45V	15°/30°/45°	2700K/3000K/4000K	2233lm	>90Ra	on-off /0-10V dim/Triac dim/DALI dim
