Pull out spotlight series

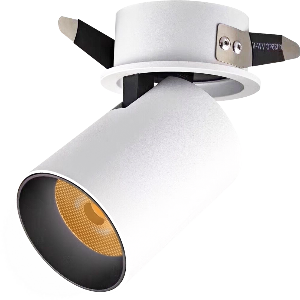

Pull-out spot light PoR13025 die-casting high-rank aluminum integrated
heat sink. international top COB CITlZEN chip, high quality driver,
combined with KWT exclusive optical system of lens, Standard driver
originally researched and developed by KWT, stable specifications, glare-
free, good heat sink, brilliant quality, more than 40,000 hours life span.
Lighting Effects
Dapibus cras viverra magnis lectus quis placerat vel a.
Applacation Emagery
Hotel Lobby , Shopping mall , office , Stations ,and any high ceiling are all vailable .
Product Details
High Ra>90, Low SDCM<3
High efficacy, high illuminance, accurate beam anglemakes ofcomfortable illumination atmosphere
Rotatable horizontal355° and vertical 90°, EasyInstallation, for wide applications
Refined components and design, guarantee a longlifespan of over 40,000 hours
User-centeredinstallationdesign, convenient andsimple use
Elegantappearance, can be pulled out
[/av_textblock]
[/av_one_full][/av_section][av_layout_row border='' min_height_percent='' min_height_pc='25' min_height='0' color='main_color' mobile='av-flex-cells' mobile_breaking='' av-desktop-hide='' av-medium-hide='' av-small-hide='' av-mini-hide='' id='' custom_class='' aria_label='' av_element_hidden_in_editor='0' av_uid='av-5wyte7']
[av_cell_one_full vertical_align='top' padding='30px,12%,30px,12%' background='bg_color' background_color='#ffffff' background_gradient_color1='' background_gradient_color2='' background_gradient_direction='vertical' src='' attachment='' attachment_size='' background_attachment='scroll' background_position='top left' background_repeat='no-repeat' link='' linktarget='' link_hover='' mobile_display='' custom_class='' av_uid='av-hff6n']
[av_heading heading='Specification ' tag='h3' link='' link_target='' style='blockquote modern-quote modern-centered' size='45' subheading_active='' subheading_size='15' margin='1%,0px,2%,0px' padding='10' icon_padding='10' color='custom-color-heading' custom_font='' icon_color='' show_icon='' icon='ue800' font='' icon_size='' custom_class='' id='' admin_preview_bg='' av-desktop-hide='' av-medium-hide='' av-small-hide='' av-mini-hide='' av-medium-font-size-title='' av-small-font-size-title='' av-mini-font-size-title='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' av-medium-font-size-1='' av-small-font-size-1='' av-mini-font-size-1='' av_uid='av-1v6ehr'][/av_heading]
[av_textblock textblock_styling_align='' textblock_styling='' textblock_styling_gap='' textblock_styling_mobile='' size='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' font_color='' color='' id='' custom_class='' template_class='' av_uid='av-ludtrfw0' sc_version='1.0' admin_preview_bg='']
Model
finish color
Dimension
Cutout size
Output Wattage
Source Current
Source voltage
Beam Angle
Color Temperature
Luminous Flux
CRI
Dimming
PORC7312
black/white
Ø73*H118
Ø65
12W
300mA
36V
Lens: 12/24/36° Reflector: 15/24/38/60°
2700K/3000K/4000K
1112-1120lm
>90Ra
on-off /0-10V dim/Triac dim/DALI dim
PORM6212
black/white
Ø62*H160
/
12W
300mA
36V
Lens: 12/24/36° Reflector: 15/24/38/60°
2700K/3000K/4000K
1112-1120lm
>90Ra
on-off /0-10V dim/Triac dim/DALI dim
POR9812
black/white
Ø98*H120
Ø90
12W
300mA
36V
Lens: 12/24/36° Reflector: 15/24/38/60°
2700K/3000K/4000K
1112-1120lm
>90Ra
on-off /0-10V dim/Triac dim/DALI dim
POS10012
black/white
ɸ100*100*H120mm
Ø90*90
12W
300mA
36V
Lens: 12/24/36° Reflector: 15/24/38/60°
2700K/3000K/4000K
1112-1120lm
>90Ra
on-off /0-10V dim/Triac dim/DALI dim
POD100-2*12
black/white
185*100*H120
Ø175*90
2*12W
600mA
36V
Lens: 12/24/36° Reflector: 15/24/38/60°
2700K/3000K/4000K
2380-3020lm
>90Ra
on-off /0-10V dim/Triac dim/DALI dim
POT100-3*12
black/white
270*100*H120
Ø260*90
3*12W
850mA
36V
Lens: 12/24/36° Reflector: 15/24/38/60°
2700K/3000K/4000K
2380-3020lm
>90Ra
on-off /0-10V dim/Triac dim/DALI dim
POR13015
black/white
Ø130*H135
Ø120
15W
350mA
36V
Lens: 12/24/36° Reflector: 15/24/38/60°
2700K/3000K/4000K
1770-2450lm
>90Ra
on-off /0-10V dim/Triac dim/DALI dim
POS13015
black/white
ɸ130*130*H135mm
Ø120*120
15W
350mA
36V
Lens: 12/24/36° Reflector: 15/24/38/60°
2700K/3000K/4000K
1770-2450lm
>90Ra
on-off /0-10V dim/Triac dim/DALI dim
POD130-2*15
black/white
130*240*H135
Ø120*230
2*15W
720mA
36V
Lens: 12/24/36° Reflector: 15/24/38/60°
2700K/3000K/4000K
4992-4982lm
>90Ra
on-off /0-10V dim/Triac dim/DALI dim
POT130-3*15
black/white
130*345*H135
Ø120*335
3*15W
1100mA
36V
Lens: 12/24/36° Reflector: 15/24/38/60°
2700K/3000K/4000K
6375-6695lm
>90Ra
on-off /0-10V dim/Triac dim/DALI dim
POR13025
black/white
Ø130*H135
Ø120
25W
600mA
36V
15/24/36°
2700K/3000K/4000K
1770-2450lm
>90Ra
on-off /0-10V dim/Triac dim/DALI dim
POS13025
black/white
ɸ130*130*H135mm
Ø120*120
25W
600mA
36V
15/24/36°
2700K/3000K/4000K
1770-2450lm
>90Ra
on-off /0-10V dim/Triac dim/DALI dim
POD130-2*25
black/white
240*130*H135
Ø120*230
2*25W
1200mA
36V
12/24/38°
2700K/3000K/4000K
4992-4982lm
>90Ra
on-off /0-10V dim/Triac dim/DALI dim
POT130-3*25
black/white
345*130*H135
Ø120*335
3*25W
1800mA
36V
12/24/38°
2700K/3000K/4000K
6375-6695lm
>90Ra
on-off /0-10V dim/Triac dim/DALI dim
[/av_cell_one_full]
[/av_layout_row]
