V4.0 high power spotligh - KWT LED

V4.0 high power spotligh

6-2

6-3

3-3

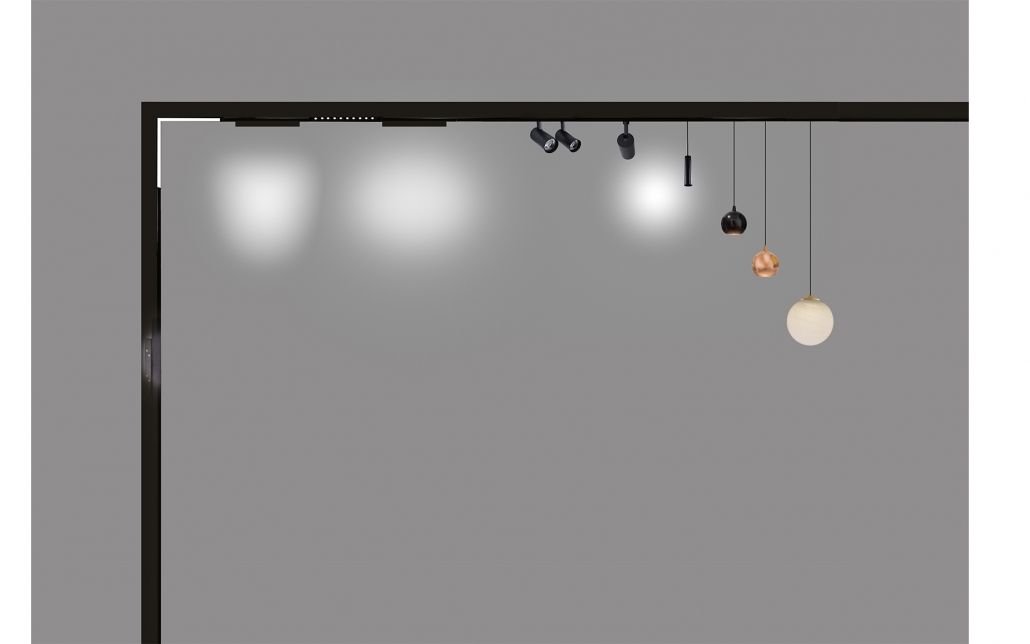

Lighting Effects

Diffuser linear , creat flood light in different length

Applacation Emagery

Home , hotel , resturant , shoppes ,office

5-5

Product Details

High Ra﹥90, Low SDCM﹤3
High efficacy, high illuminance
Glare-free design, perfect light spot and accurate beam
angle, make surroundings of comfortable illumination
Refined components and design, guarantee a long life span of over 40,000 hours
Rotatable horizontal 355° and vertical 90°
Driver box designed close to rail for a neat and elegant visual feeling

Specification

Model	Dimension	Output Wattage	Source Current	Source voltage	Beam Angle	Color Temperature	Luminous Flux	CRI	Dimming
SMS7615	Ø76mmL146H163mm	15W	315mA	48V/DC	15°/24°/36°	2700K-4000K	1033lm-1232lm	＞90Ra	No Dim/DALI /0-10V
SMS7620	Ø76mmL146H163mm	20W	415mA	48V/DC	15°/24°/36°	2700K-4000K	1492lm-1714lm	＞90Ra	No Dim/DALI /0-10V
SMS7625	Ø76mmL146H163mm	25W	520mA	48V/DC	15°/24°/36°	2700K-4000K	1994lm-2372lm	＞90Ra	No Dim/DALI /0-10V
SMS7630	Ø76mmL146H163mm	30W	625mA	48V/DC	15°/24°/36°	2700K-4000K	2372lm-2250lm	＞90Ra	No Dim/DALI /0-10V
