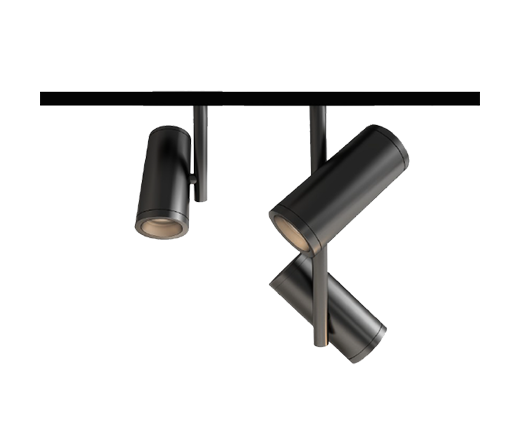

V4.0 high power spotlight - KWT LED

V4.0 Magnetic lamp

99-5

99-8

7-6

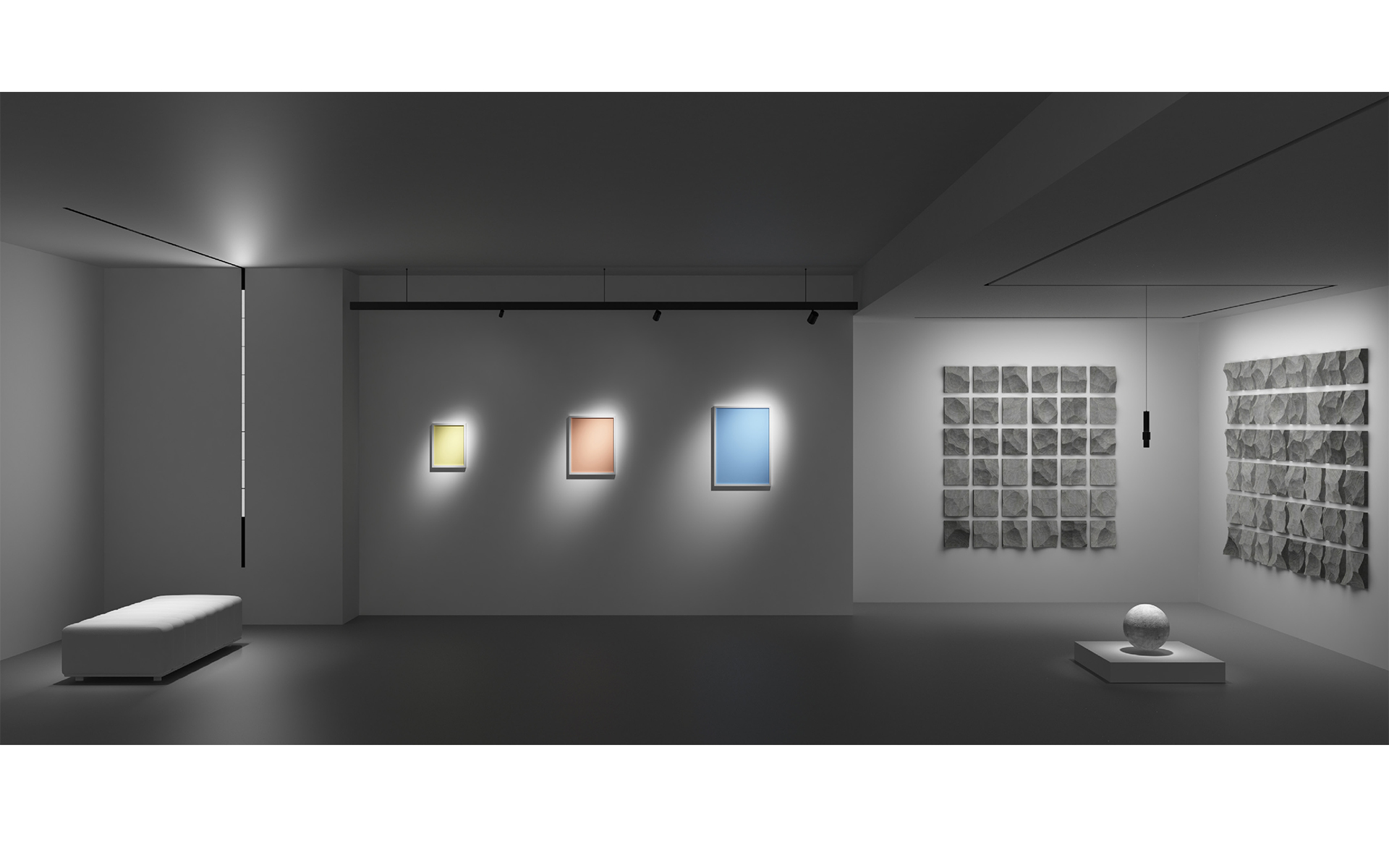

Lighting Effects

Diffuser linear , creat flood light in different length

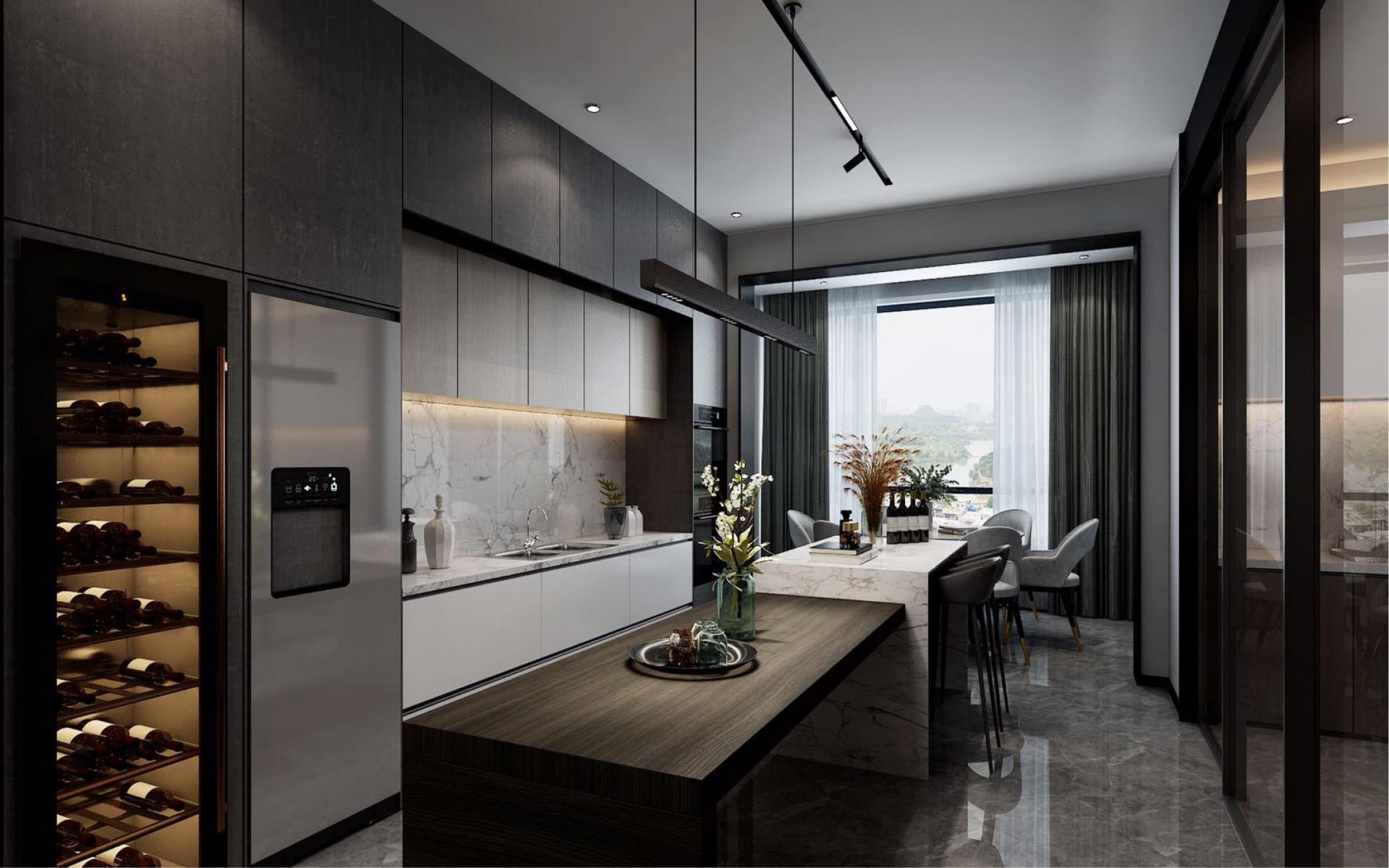

Applacation Emagery

Home , hotel , resturant , shoppes ,office

5-5

Product Details

High Ra﹥90, Low SDCM﹤3
High efficacy, high illuminance
Glare-free design, perfect light spot and accurate beam
angle, make surroundings of comfortable illumination
Refined components and design, guarantee a long life span of over 40,000 hours
Rotatable horizontal 355° and vertical 90°
Driver box designed close to rail for a neat and elegant visual feeling

Specification

Model	Finish Color	Output Wattage	Source Current	Source voltage	Beam Angle	Color Temperature	Luminous Flux	CRI	Dimming
SMS4208	White/Black	6W	125mA	48V/DC	15/24/36°	2700K/3000K/ 4000K/5000K	615lm	Ra>90	No Dim/ DALI Dim /0-10V
SMS4208	White/Black	12W	125mA	48V/DC	15/24/36°	2700K/3000K/ 4000K/5000K	1230lm	Ra>90	No Dim/ DALI Dim /0-10V
