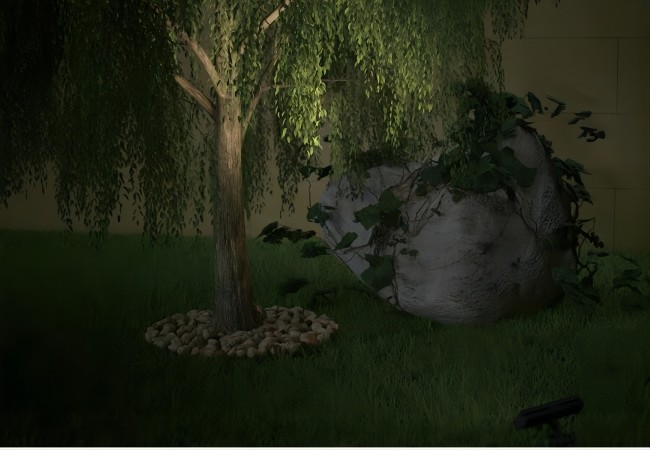

Lighting Effects
Diffuser linear , creat flood light in different length
Applacation Emagery
Widely used in: ground decorative lighting in urban squares, sculptures, garden communities, roads, parks, scenic spots, commercial pedestrian streets, parking lots and other places.
Product Details
1.IP67 waterproof Mini LED Inground light for outdoor garden/ Step/ Stair /walk lighting use;
2.Buried,recessed, floor recessed, ceiling recessed installation optional.
3.Stainless steel SUS304#/SUS316# front cover;
4.Clear, frosted, diffused glass optional.
5.Heat resistance international standard rubber cable.
6.Using high-quality and high-precision material and structural waterproof, easy to maintain.
Specification
Model | light source | Wattage | Lens degree | Input voltage | Operating current | Color Temperature | Luminous Flux | CRI | Dimming |

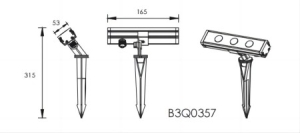

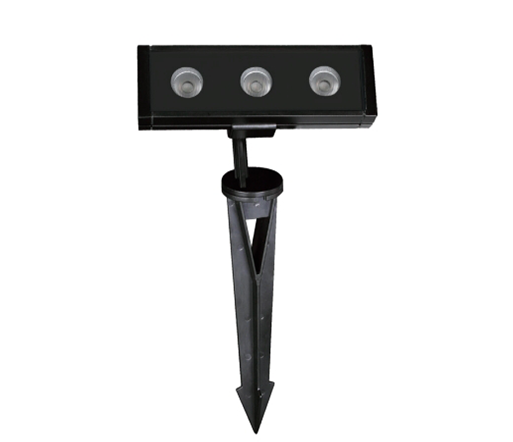

B3Q0357 | 3×1.5W | 6W | 30º | 24V | 250mA | 2000K/3000K/6000K | 493lm-411lm | Ra>80 | Triac PWM 1-10V Dali |

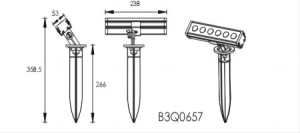

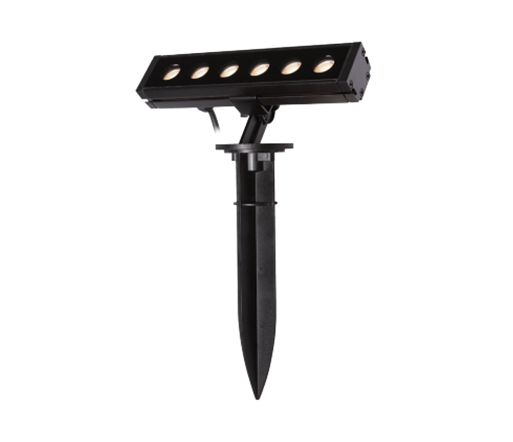

B3Q0657 | 6×1.5W | 12W | 20º | 24V | 502mA | 2000K/3000K/6000K | 937lm-967lm | Ra>80 | Triac PWM 1-10V Dali |
