Mini Linear Profile-Recessed

1 2 3

Lighting Effects

Diffuser linear , creat flood light in different length

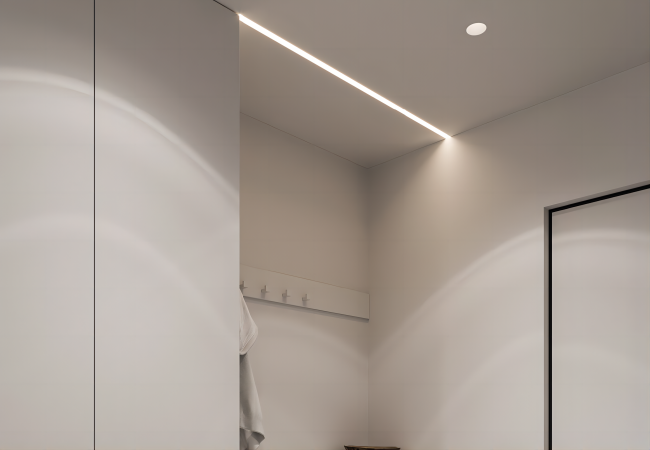

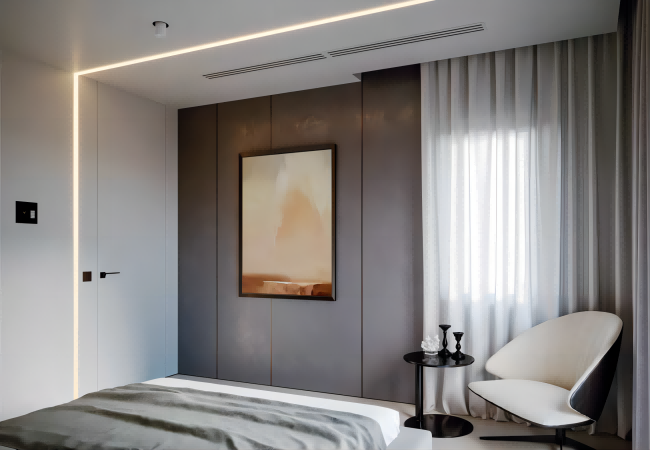

Applacation Emagery

hotel , resturant , shopping mall ,office， corridor,

Product Details

These Surface-mounted linear fixtures are our hot-selling products with a narrow, low profile.
The 110-degree beam angle is ideal for a wide, even spread of light like in cove and wall-washing applications.
They can create clean, modern linear designs for retail stores, commercial buildings and residential interiors.
Some of them can also be used in conjunction with our tiltable stands.
There are includes a choice of clear, frosted or milky diffuser.

Specification

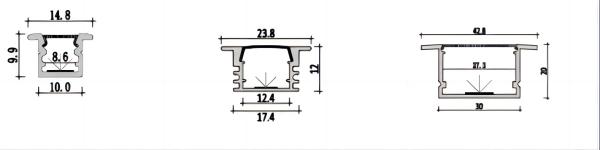

Model	Dimension	Cutou	Output Wattage	Source Current	Beam Angle	Color Temperature	Luminous Flux	CRI	Dimming

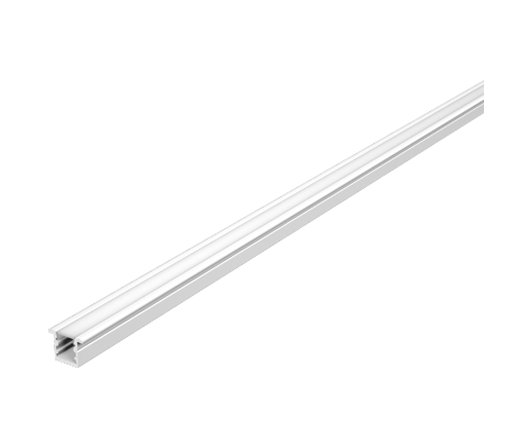

Y1510-1000	L1000 x W10 x H10mm	W11x H 10mm	10w	24VDC	110°	2200K-6500K	＞100Lm/w	Ra＞90	No Dim/0-10V/Dali/ZigBee
Y1510-1500	L1500 x W10 x H10mm	W11x H 10mm	12.5W	24VDC	110°	2200K-6500K	＞100Lm/w	Ra＞90	No Dim/0-10V/Dali/ZigBee
Y1510-2000	L2000 x W10 x H10mm	W11x H 10mm	18W	24VDC	110°	2200K-6500K	＞100Lm/w	Ra＞90	No Dim/0-10V/Dali/ZigBee

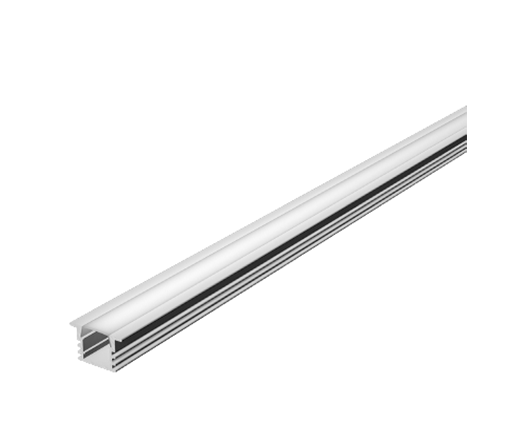

Y2412-1000	L1000 x W24 x H12mm	W18x H 12mm	20W	24VDC	110°	2700K-6500K	＞100Lm/w	Ra＞90	No Dim/0-10V/Dali/ZigBee
Y2412-1500	L1500 x W24 xH12mm	W18x H 12mm	24W	24VDC	110°	2700K-6500K	＞100Lm/w	Ra＞90	No Dim/0-10V/Dali/ZigBee
Y2412-2000	L2000 x W24 x H12mm	W18x H 12mm	40W	24VDC	110°	2700K-6500K	＞100Lm/w	Ra＞90	No Dim/0-10V/Dali/ZigBee

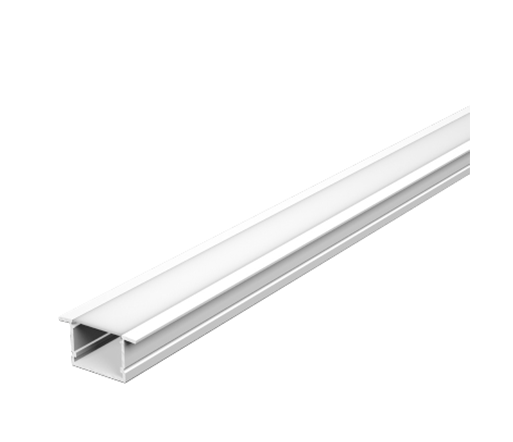

Y4320-1000	L1000 x W30 x H20mm	W33x H 20mm	24W	24VDC	110°	2700K-6500K	＞100Lm/w	Ra＞90	No Dim/0-10V/Dali/ZigBee
Y4320-1500	L1500 x W30x H20mm	W33x H 20mm	36W	24VDC	110°	2700K-6500K	＞100Lm/w	Ra＞90	No Dim/0-10V/Dali/ZigBee
Y4320-2000	L2000 x W30 x H20mm	W33x H 20mm	48W	24VDC	110°	2700K-6500K	＞100Lm/w	Ra＞90	No Dim/0-10V/Dali/ZigBee
