Applacation Emagery

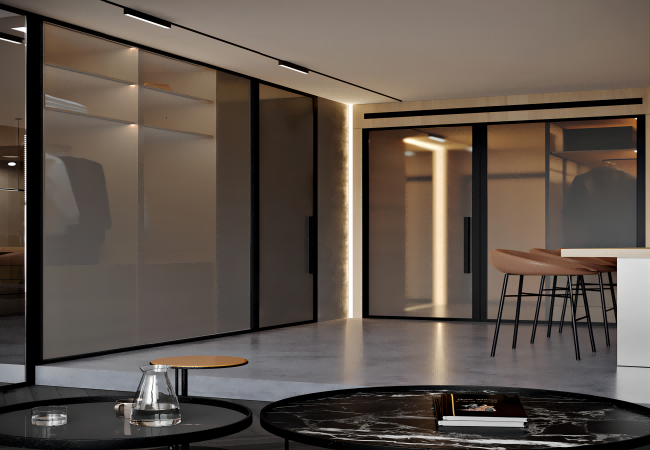

hotel , resturant , shopping mall ,office， corridor,
Product Details

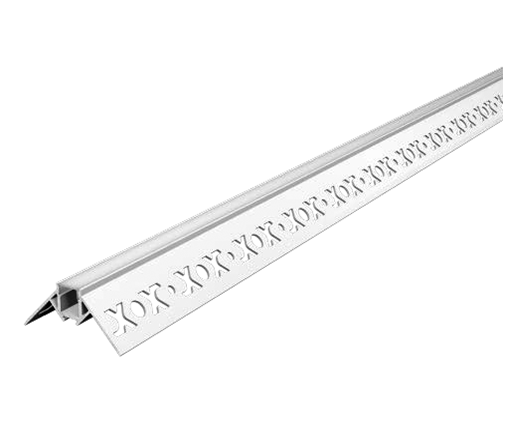

This series products fully integrated architectural lighting,
it offers unprecedented visual possibilities through Invisible line.
The profiles can be easily integrated at a minimum installation depth of only 10 mm.
The almost infinite three-dimensional matching combinations offer unprecedented
freedom to satisfy all creative ambitions
Specification

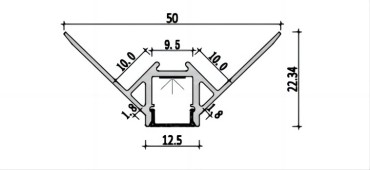

| Model | Dimension | Finish color | Output Wattage | Source Current | Beam Angle | Color Temperature | Luminous Flux | CRI | Dimming |
| C5022-1200 | L1000 | white/silver/black | 10W | 24VDC | 110° | 2200K-6500K | ＞100Lm/w | Ra＞90 | No Dim/0-10V/Dali/ZigBee |
| C5022-1500 | L1500 | white/silver/black | 12.5W | 24VDC | 110° | 2200K-6500K | ＞100Lm/w | Ra＞90 | No Dim/0-10V/Dali/ZigBee |
| C5022-2000 | L2000 | white/silver/black | 18W | 24VDC | 110° | 2200K-6500K | ＞100Lm/w | Ra＞90 | No Dim/0-10V/Dali/ZigBee |
