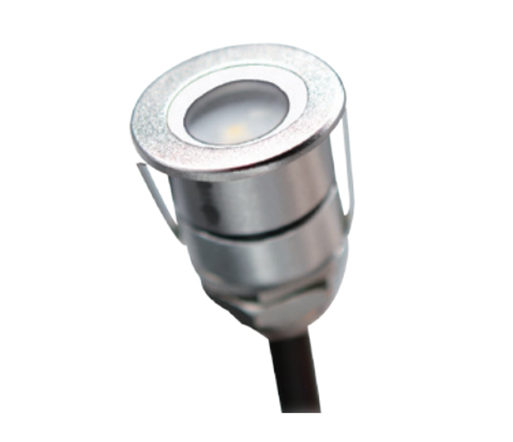

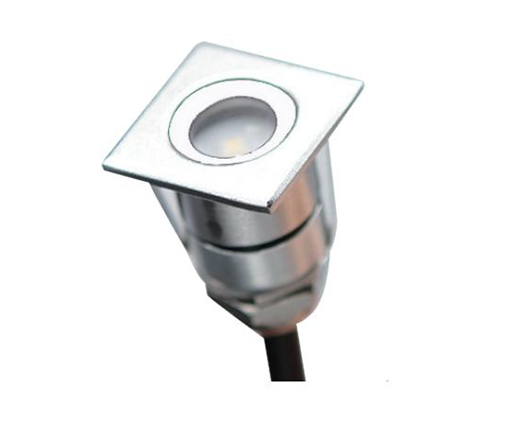

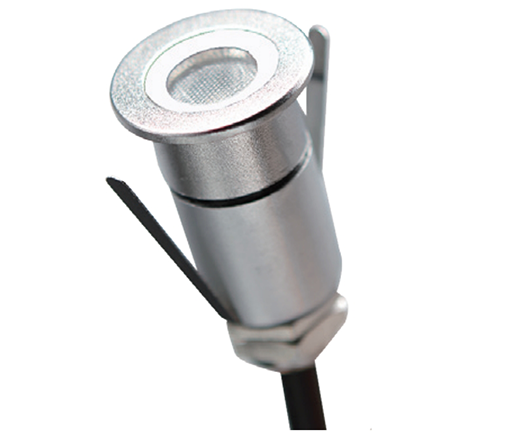

Up Beam Type Mini LED inground light

Applacation Emagery

Widely used in: ground decorative lighting in urban squares, sculptures, garden communities, roads, parks, scenic spots, commercial pedestrian streets, parking lots and other places.

Product Details

1.IP67 waterproof Mini LED Inground light for outdoor garden/ Step/ Stair /walk lighting use;
2.Buried,recessed, floor recessed, ceiling recessed installation optional.
3.Stainless steel SUS304#/SUS316# front cover;
4.Clear, frosted, diffused glass optional.
5.Heat resistance international standard rubber cable.
6.Using high-quality and high-precision material and structural waterproof, easy to maintain.

Specification

Model	light source	Wattage	Lens degree	Input voltage	Operating current	Color Temperature	Luminous Flux	CRI	Dimming

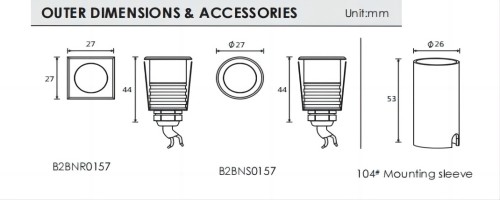

B2BNR0157	1×2W	2.4W	20°	24V	50mA	2000K/3000K/6000K	135lm-148lm	Ra＞80	Triac PWM 1-10V Dali
B2BNS0157	1×2W	1.5W	20°	24V	500mA	2000K/3000K/6000K	135lm-148lm	Ra＞80	Triac PWM 1-10V Dali
D2BMR0156	1×1W	1.2W	120°	24V	100mA	2000K/3000K/6000K	58lm-66lm	Ra＞80	Triac PWM 1-10V Dali
D2BMS0156	1×1W	1W	120°	24V	350mA	2000K/3000K/6000K	58lm-66lm	Ra＞80	Triac PWM 1-10V Dali
