Lighting Effects
Dapibus cras viverra magnis lectus quis placerat vel a.

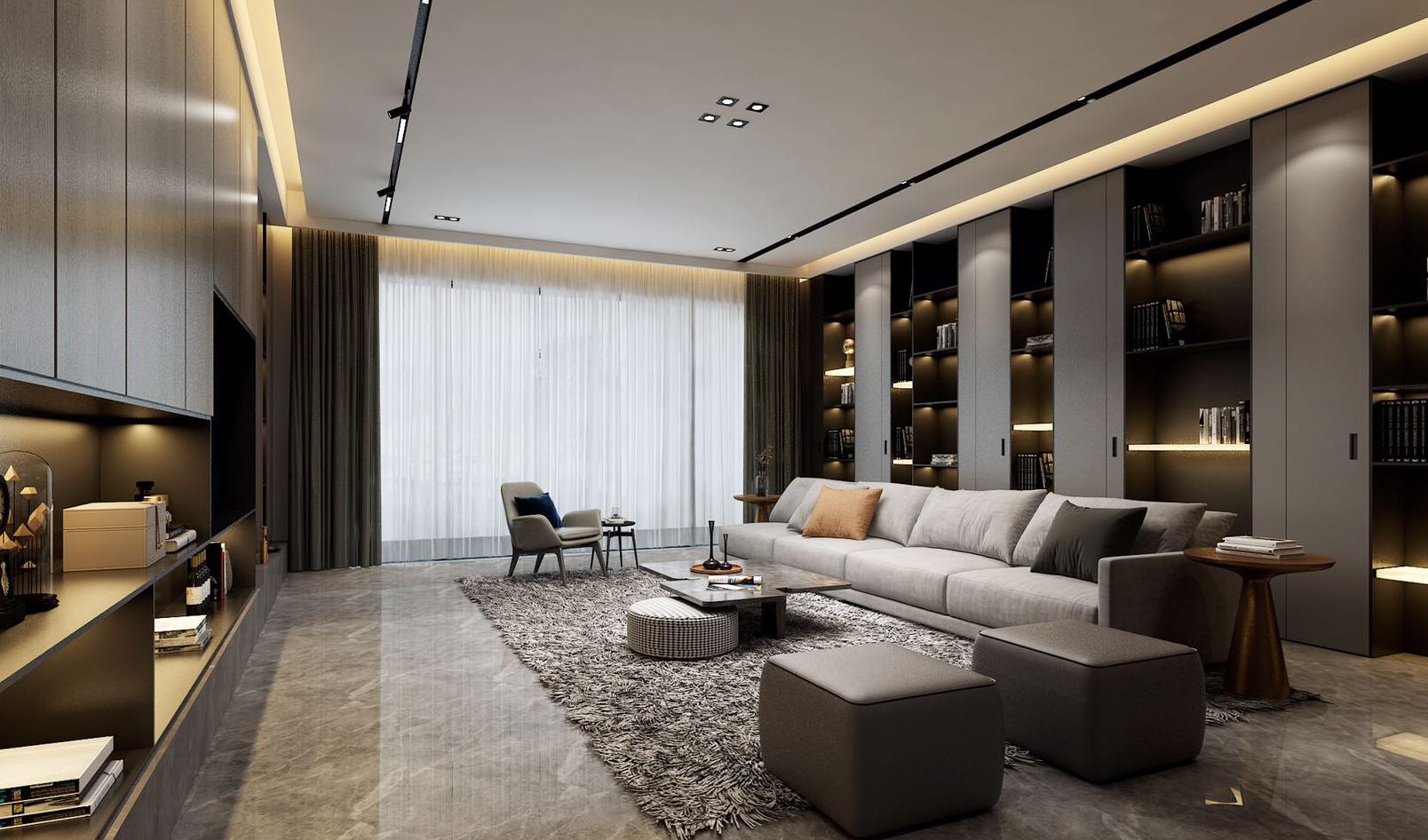

Applacation Emagery
Dapibus cras viverra magnis lectus quis placerat vel a.

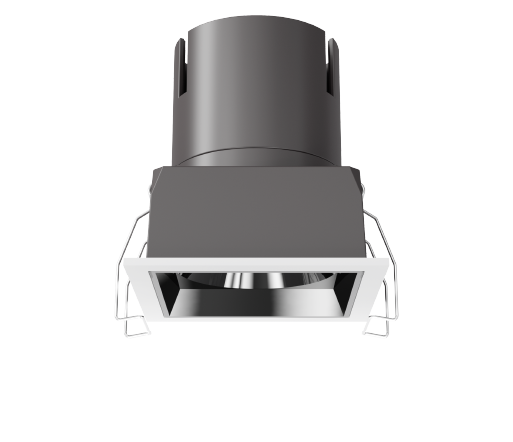

Product Details
- Flush mount installation on false ceilings of thickness 0.5-20 mm using torsion springs.
- Body and heat sink in die-cast and extruded aluminum.

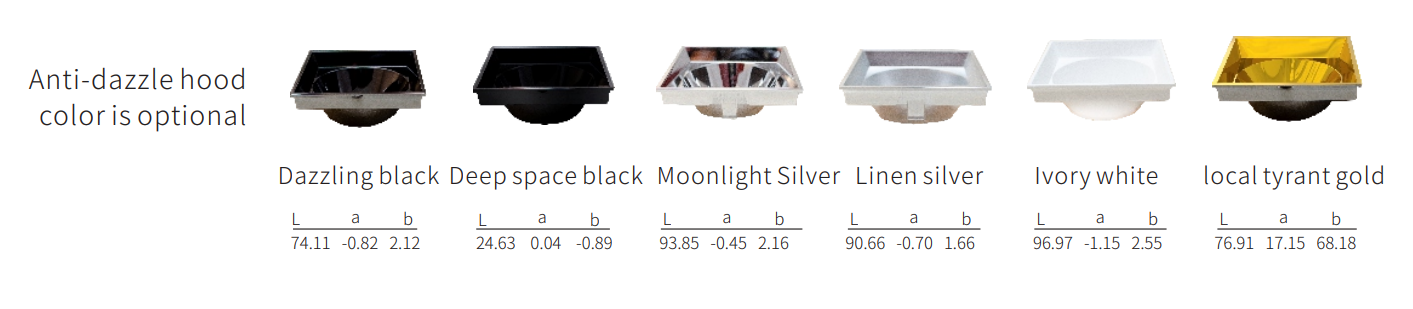

- Reflector in metallic-finish thermoplastic material with scratch protection for excellent lighting efficiency and visual comfort.
- Versions suitable for use in settings with UGR <19 video terminals, Super Comfort UGR <10 versions.
- Modular design,easilyassembly&disassemblyandmaintance
- Available with electronic wiring and DALI， Triac,0-10V & Zigbee
- IP20
- IP4４ on the visible body of the mount after installation (Minimal versions).
Specification
| Model No. | Dimension | Cutout | Output Wattage | Source Current | Source voltage | Beam Angle | Color Temperature | Luminous Flux | CRI | Dimming | ||
| HDLS7510G/F | L85xW85xH106mm | L75xW75mm | 10W | 300mA | 31V | 15°/25°/35°/50° | 2.7K/3K/3.5K/4K/5K/6K | 850lm | >90Ra | on-off / Triac dim/ 0-10V dim / Dali dim /Zigbee dim | ||
| HDLS7512G/F | L85xW85xH106mm | L75xW75mm | 12W | 300mA | 31V | 15°/25°/35°/50° | 2.7K/3K/3.5K/4K/5K/6K | 1000lm | >90Ra | on-off / Triac dim/ 0-10V dim / Dali dim /Zigbee dim | ||
