Bulgari series recessed downlight trimless

Bulgari deep anti-glare ceiling spotlight, BDL5507G is an anti-glare spotlight independently designed and developed by KWT. It is composed of various opening sizes such as 55mm, 75mm, 95mm, etc., and has a family design, including round, square, and single head. , multi-headed and borderless styles. It adopts the international top quality COB light source, with various beam angles of 15°, 25°, 36°, and 50°. It can be matched with various optical accessories. It adopts a flicker-free high-quality driver and can be adapted to non-dimming, thyristor, and 0 -10V, DALI, PLC, ZIGBEE, Bluetooth and other different dimming control systems

1 2

Lighting Effects

Dapibus cras viverra magnis lectus quis placerat vel a.

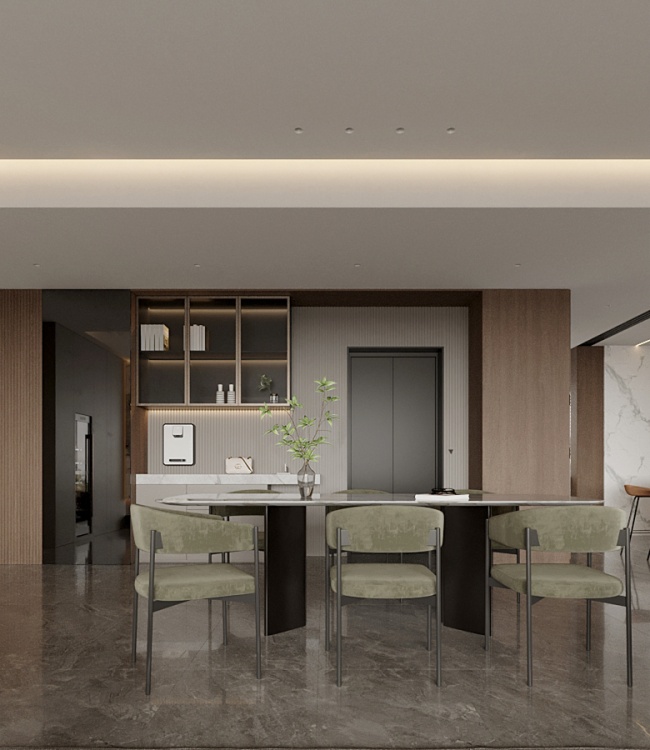

Applacation Emagery

Hotel Lobby , Shopping mall , office , Stations ,and any high ceiling are all vailable .

Product Details

Structure designed in deep anti-glare to ensure the UGR<10. It creates a comfortable light environment for people;
Reflecor has different colors and shapes for options ,it meet any decoration and light distribution requirments.
The fixture head has adjustable funcation of adjust angle at vertical is 0-25 degrees, and horizontal is 350 degrees;
Modular structure for easy assembly, installation and disassembly;
Long life span more than 50000hrs .

Specification

Model	Dimension	Cutout	Output Wattage	Source Current	Source voltage	Beam Angle	Color Temperature	Luminous Flux	CRI	Dimming
BDL5507-TR	∅53*H70mm	Ø60mm	7W	200mA	31V/DC	8°/15°/24°/38°/50°	2700K-6000K	67Lm/w*7W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDL5507-TR-A	∅55*H80mm	Ø60mm	7W	200mA	31V/DC	10°/15°/24°/38°/50°	2700K-6000K	67Lm/w*7W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDLS5507-TR	D54mm*H78mm	58*58mm	7W	200mA	31V/DC	8°/15°/24°/38°/50°	2700K-6000K	67Lm/w*7W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDLS5507-TR-A	D55mm*H85mm	57.5*57.5mm	7W	200mA	31V/DC	10°/15°/24°/38°/50°	2700K-6000K	67Lm/w*7W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDL5507-TR-B	∅53*H70mm	Ø55mm	7W	200mA	31V/DC	10°/15°/24°/38°/50°	2700K-6000K	67Lm/w*7W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDL5510TR-B	∅53*H85mm	Ø55mm	7W	200mA	31V/DC	10°/15°/24°/38°/50°	2700K-6000K	67Lm/w*7W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDL5510-TR	∅53*H85mm	Ø55mm	10W	275mA	31V/DC	8°/15°/24°/38°/50°	2700K-6000K	67Lm/w*10W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDLS5510-TR	D64mm*H93mm	56*60mm	10W	275mA	31V/DC	15°/24°/36°/50°	2700K-6000K	67Lm/w*10W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDL1105514-TR	L116H75W65mm	60*125mm	14W	380mA	31V/DC	15°/24°/36°/50°	2700K-6000K	67Lm/w*14W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDL1655521-TR	L161H78W54mm	54*161mm	21W	580mA	31V/DC	15°/24°/36°/50°	2700K-6000K	67Lm/w*21W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDL11011028-TR	L108*H78	110*115mm	28W	760mA	31V/DC	15°/24°/36°/50°	2700K-6000K	67Lm/w*28W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDL7512-TR	D95*H80mm	Ø75mm	12W	320mA	31V/DC	8°/15°/24°/38°/50°	2700K-6000K	67Lm/w*12W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDL7512-TR-C	D95*H80mm	Ø75mm	12W	320mA	31V/DC	8°/15°/24°/38°/50°	2700K-6000K	67Lm/w*12W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDL7512-TR-D	D95*H80mm	Ø75mm	12W	320mA	31V/DC	8°/15°/24°/38°/50°	2700K-6000K	67Lm/w*12W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDLS7512-TR	L85*H91	75*75mm	12W	320mA	31V/DC	15°/25°/35°/60°	2700K-6000K	67Lm/w*12W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDLS7512-TR-C	L85*H91	76*76mm	12W	320mA	31V/DC	15°/25°/35°/60°	2700K-6000K	67Lm/w*12W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDLS7512-TR-D	L85*H91	76*76mm	12W	320mA	31V/DC	15°/25°/35°/60°	2700K-6000K	67Lm/w*12W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDLS7512-TR-E	L85*H91	76*76mm	12W	320mA	31V/DC	15°/25°/35°/60°	2700K-6000K	67Lm/w*12W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDL7520-TR	D95*H110mm	Ø75mm	20W	550mA	31V/DC	8°/15°/24°/38°/50°	2700K-6000K	67Lm/w*20W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDL7520-TR-A	D75*H100mm	Ø77mm	20W	550mA	31V/DC	10°/15°/24°/38°/50°	2700K-6000K	67Lm/w*20W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDL7520-TR-C	D95*H80mm	Ø75mm	20W	550mA	31V/DC	15°/25°/36°/50°	2700K-6000K	67Lm/w*20W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDL7520-TR-D	D95*H80mm	Ø75mm	20W	550mA	31V/DC	15°/25°/36°/50°	2700K-6000K	67Lm/w*20W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDLS7520-TR	D85*H121mm	76*76mm	20W	550mA	31V/DC	15°/25°/36°/50°	2700K-6000K	67Lm/w*20W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDLS7520-TR-A	D75*H116mm	77.5*77.5mm	20W	550mA	31V/DC	10°/15°/24°/38°/50°	2700K-6000K	67Lm/w*20W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDLS7520-TR-C	D85*H121mm	76*76mm	20W	550mA	31V/DC	15°/25°/35°/60°	2700K-6000K	67Lm/w*20W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDLS1507524-TR	L163*H91	75*155mm	24W	650mA	31V/DC	15° /24°/36°/ 50°	2700K-6000K	67Lm/w*24W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDLS2257536-TR	L221H91W74mm	75*230mm	36W	980mA	31V/DC	15° /24°/36°/ 50°	2700K-6000K	67Lm/w*36W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDLS15015048-TR	L147*H91	155*150mm	48W	1310mA	31V/DC	15° /24°/36°/ 50°	2700K-6000K	67Lm/w*48W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDL9520-TR	D91*H110mm	Ø100mm	20W	550mA	31V/DC	15°/24°/38°/60°	2700K-6000K	67Lm/w*20W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
