DLG Series Gimbal Recessed Downlight - KWT LED

DLG Series Gimbal Recessed Downlight

Melia Gimbal

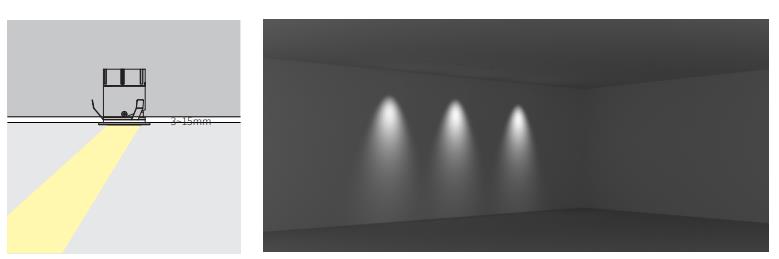

Lighting Effects

Gimbal head , Spot type ,available for all kinds shoppes

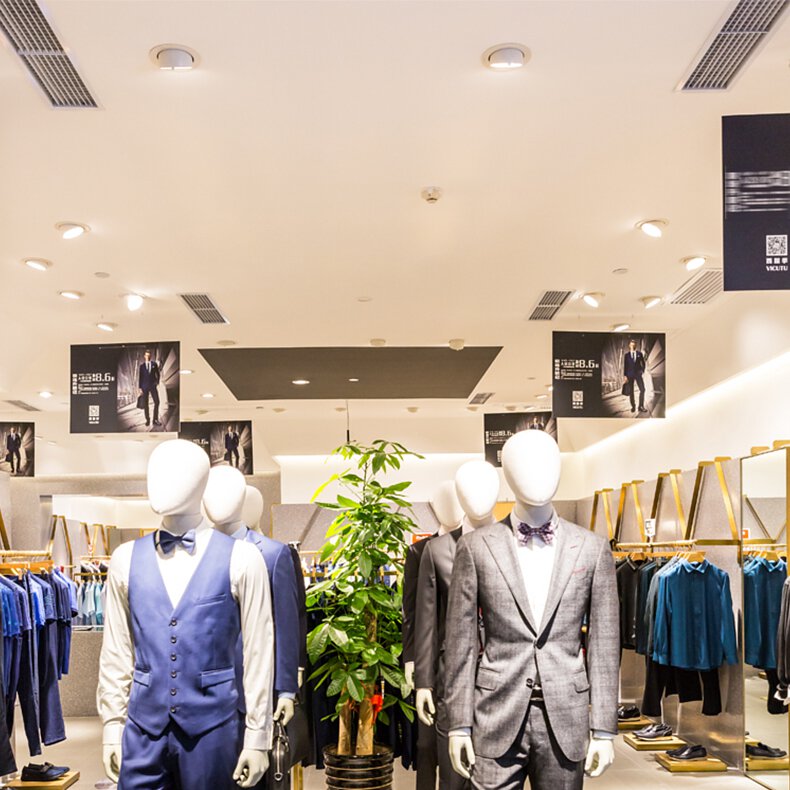

Applacation Emagery

Gimbal head , Spot type ,available for all kinds shoppes

800x

Product Details

1. High brightness，Low SDCM＜3，low light decline
2. High efficacy,high illuminance、accurate beam angle makes comfortable illumination atmosphere、Refined components and design
3. guarantee a long lifespan of over 40,000 hours
4. Triac,0-10v,Dali dimmable is available
5. Easy installation,Widey used in Airport,train station,exbition center,hotel lobby,office ect.

Specification

Model	Dimension	Cutout size	Wattage	Source Current	Source voltage	Beam Angle	Color Temperature	Luminous Flux	CRI	Dimming
DLG7509	∅90*H75mm	∅75mm	9W	220mA	36V	15°/24°/38°/45°	2700K-6500K	793-820lm	>90Ra	Dali dim /0-10V dim /Triac dim
DLG10015	∅114*H95mm	∅100mm	15W	350mA	36V	15°/24°/38°/45°	2700K-6500K	1489-1538lm	>90Ra	Dali dim /0-10V dim /Triac dim
DLG13030	∅138*H115mm	∅128mm	30W	720mA	36V	15°/24°/38°/45°	2700K-6500K	3170-3316lm	>90Ra	Dali dim /0-10V dim /Triac dim
DLG15540	∅165*H140mm	∅1555mm	40W	960mA	36V	15°/24°/38°/45°	2700K-6500K	4076-4620lm	>90Ra	Dali dim /0-10V dim /Triac dim
DLG17550	∅190*H160mm	∅175mm	50W	1200mA	36V	15°/24°/38°/60°	2700K-6500K	4916-5465lm	>90Ra	Dali dim /0-10V dim /Triac dim
