Lighting Effects
Wide beam angle 55 degrees , IP44 protection grade , available for office , corridor ,bath room ,showroom, resturant ,banquet hall

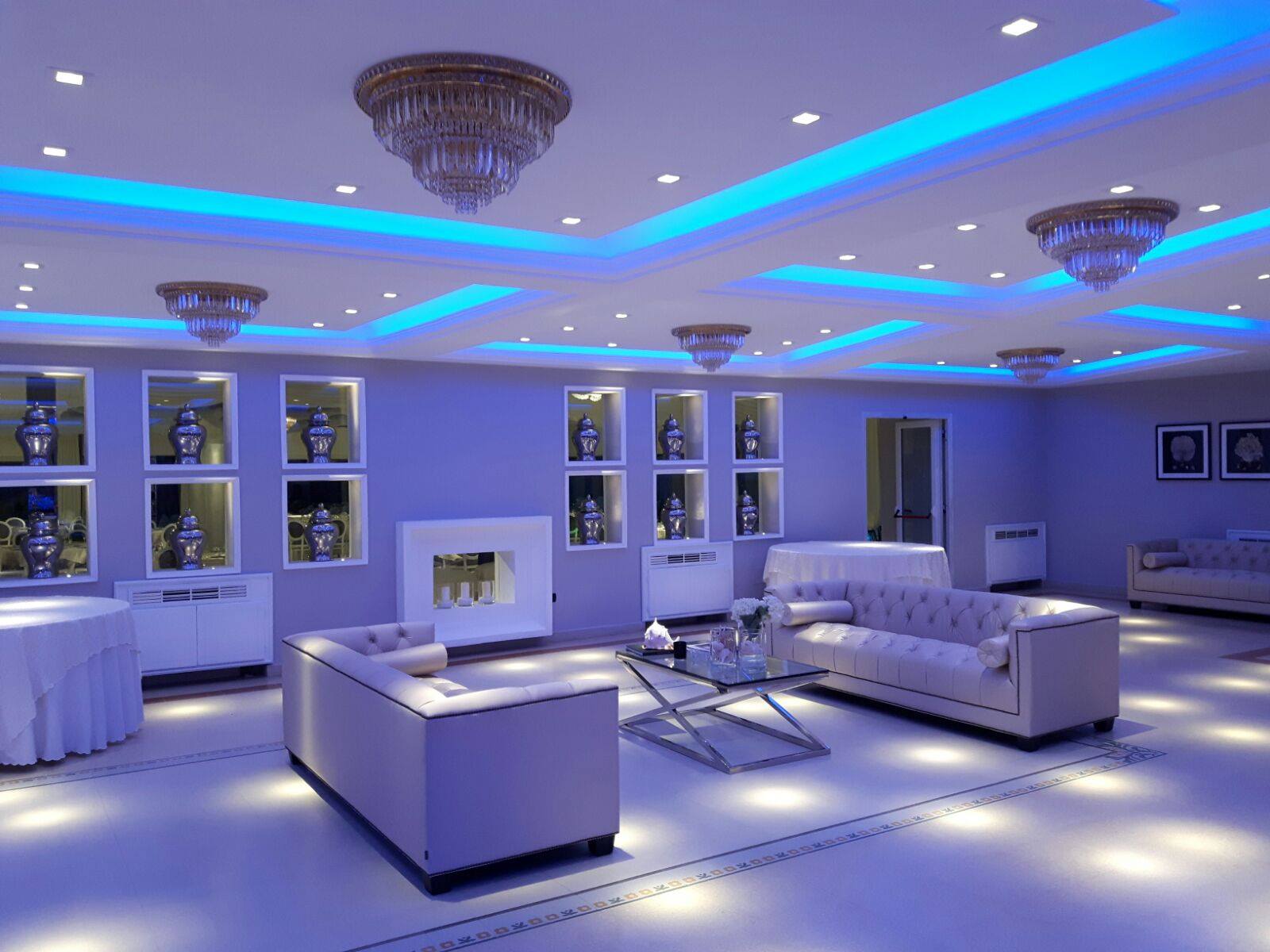

Applacation Emagery
Wide beam angle 55 degrees , IP44 protection grade , available for office , corridor ,bath room ,showroom, resturant ,banquet hall
Product Details
-
- High brightness，Low SDCM＜3，low light decline
- High efficacy,high illuminance、accurate beam angle makes comfortable illumination atmosphere、Refined components and design
- guarantee a long lifespan of over 40,000 hours
- Triac,0-10v,Dali dimmable is available
- Easy installation,Widey used in Airport,train station,exbition center,hotel lobby,office ect.
Specification
| Model | Dimension | Cutout size | Output Wattage | Source Current | Source voltage | Beam Angle | Color Temperature | Luminous Flux | CRI | Dimming |
| DLS0812C | L115W*115mm | L110W*110mm | 12W | 300mA | 36V | 55° | 2700K-6500K | 1069-1159lm | >90Ra | on-off /0-10V dim/Triac dim/Dali dim |
| DLS0822C | L140*W140mm | L135*W135mm | 22W | 520mA | 36V | 55° | 2700K-6500K | 1989-2114lm | >90Ra | on-off /0-10V dim/Triac dim/Dali dim |
| DLS0832C | L160*W160mm | L155*W155mm | 32W | 750mA | 36V | 55° | 2700K-6500K | 3159-3349lm | >90Ra | on-off /0-10V dim/Triac dim/Dali dim |
| DLS0842C | L195*W195mm | L185*W185mm | 42W | 1000mA | 36V | 55° | 2700K-6500K | 4027-4371lm | >90Ra | on-off /0-10V dim/Triac dim/Dali dim |
