Lighting Effects
Different beam angles , IP67 waterproof protection grade , available for outdoor use ,Semi outdoor ,office , corridor ,bath room ,showroom

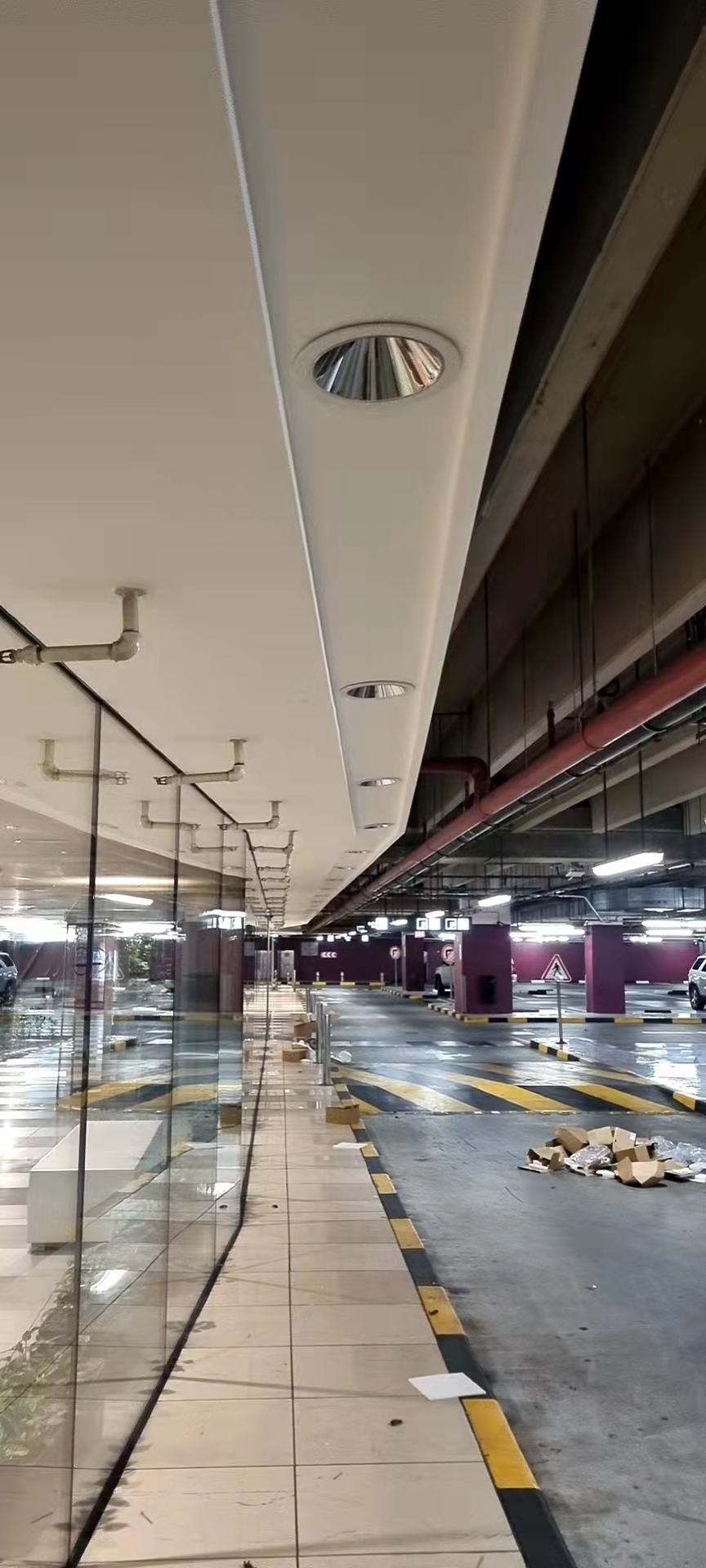

Applacation Emagery
Different beam angles , IP67 waterproof protection grade , available for outdoor use ,Semi outdoor ,office , corridor ,bath room ,showroom

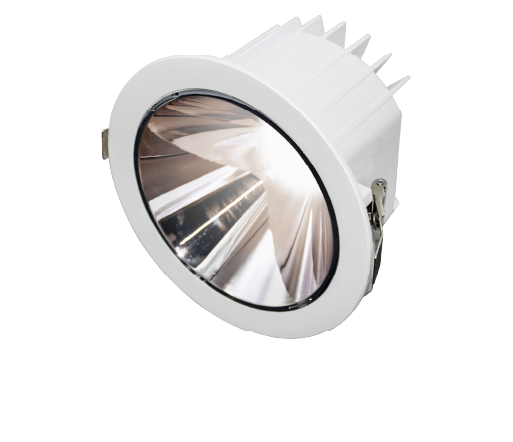

Product Details
-
- High brightness，Low SDCM＜3，low light decline
- High efficacy,high illuminance、accurate beam angle makes comfortable illumination atmosphere、Refined components and design
- guarantee a long lifespan of over 40,000 hours
- Triac,0-10v,Dali dimmable is available
- Easy installation,Widey used in Airport,train station,exbition center,hotel lobby,office ect.
Specification
| Model | Dimension | Cutout size | System Wattage | Source Current | Source Voltage | Beam Angle | Color Temperature | Luminous Flux | CRI | Dimming |
| DLW0412 | D100*H75mm | Ø 90mm | 12W | 300mA | 36V | 45°/55° | 2700K-6500K | 1105lm-1199lm | >90Ra | on-off /0-10V dim/Triac dim/Dali dim |
| DLW0522 | D140*H90mm | Ø 130mm | 22W | 520mA | 36V | 45°/55° | 2700K-6500K | 1472-1502lm | >90Ra | on-off /0-10V dim/Triac dim/Dali dim |
| DLW0632 | D185*H112mm | Ø 170mm | 32W | 750mA | 36V | 45°/55° | 2700K-6500K | 2335-2477lm | >90Ra | on-off /0-10V dim/Triac dim/Dali dim |
| DLW0842 | D230*H128mm | Ø 200mm | 42W | 1000mA | 36V | 45°/55° | 2700K-6500K | 3492-3536lm | >90Ra | on-off /0-10V dim/Triac dim/Dali dim |
