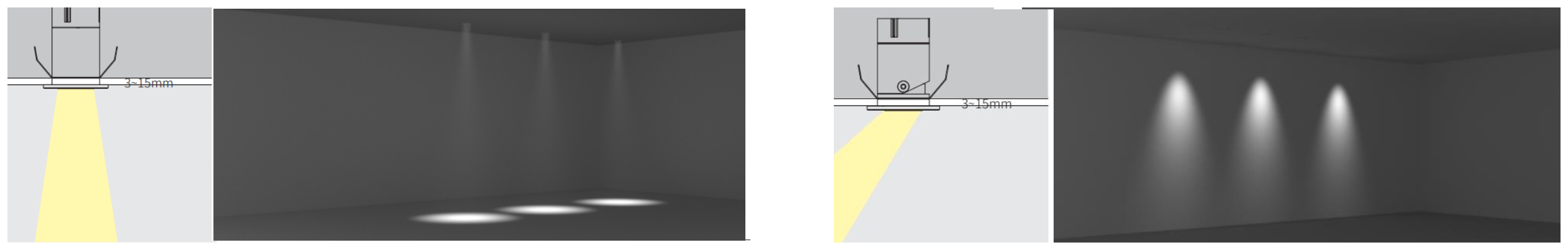

Lighting Effects

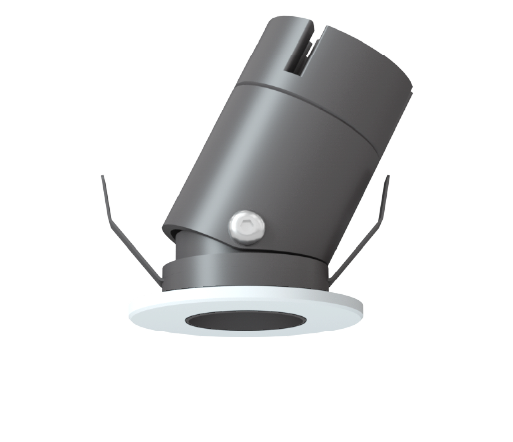

It has Gimbal head ： Wall washer effect

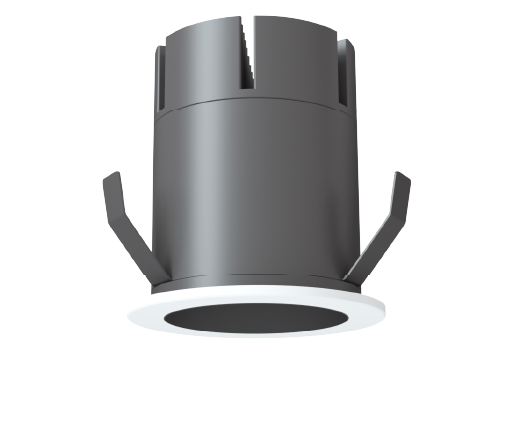

Fixed head : Spotlight effect
Applacation Emagery
Dapibus cras viverra magnis lectus quis placerat vel a.
Product Details
- Flush mount installation on false ceilings of thickness 0.5-20 mm using torsion springs.
- Body and heat sink in die-cast and extruded aluminum.
- Reflector in metallic-finish thermoplastic material with scratch protection for excellent lighting efficiency and visual comfort.
- Versions suitable for use in settings with UGR <19 video terminals, Super Comfort UGR <10 versions.
- Modular design,easilyassembly&disassemblyandmaintance
- Available with electronic wiring and DALI， Triac,0-10V & Zigbee
- IP20
- IP4４ on the visible body of the mount after installation (Minimal versions).
Specification
| Model | Face Ring & Reflector | Dimension | Cutout | Output Wattage | Source Current | Source voltage | Beam Angle | Color Temperature | Luminous Flux | CRI | Dimming |
| HDM30G | With Trim | D35 x H44mm | Ø 30mm | 1W | 30mA | 33Ｖ | 9°/18°/30° | 2.7K/3K/3.5K/4K/5K/6K | 54-63ml | >90Ra | on-off / Triac dim/ 0-10V dim / Dali dim /Zigbee dim |
| HDM40G | With Trim | D45 x H50mm | Ø 40mm | 3W | 90mA | 33Ｖ | 9°/18°/35° | 2.7K/3K/3.5K/4K/5K/6K | 126-146ml | >90Ra | on-off / Triac dim/ 0-10V dim / Dali dim /Zigbee dim |
| HDM50G | With Trim | D55 x H60mm | Ø 50mm | 5W | 150mA | 33Ｖ | 35°/45° | 2.7K/3K/3.5K/4K/5K/6K | 215-304ml | >90Ra | on-off / Triac dim/ 0-10V dim / Dali dim /Zigbee dim |
| HDM60G | With Trim | D65 x H70mm | Ø 60mm | 7W | 210mA | 33Ｖ | 15°/30°/36° | 2.7K/3K/3.5K/4K/5K/6K | 549-626ml | >90Ra | on-off / Triac dim/ 0-10V dim / Dali dim /Zigbee dim |
