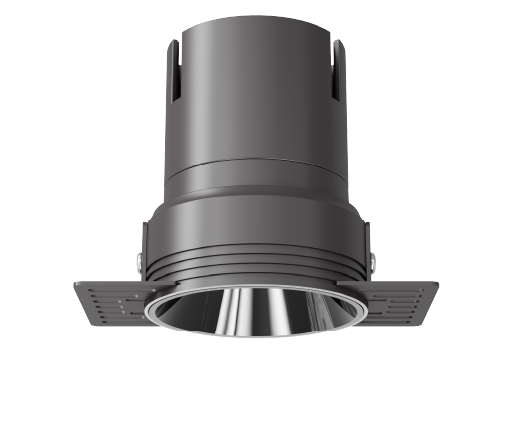

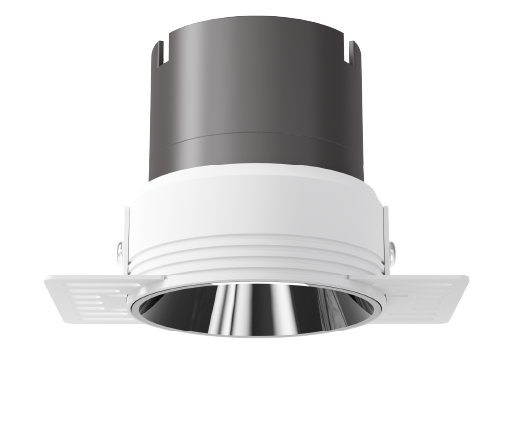

Wyndham Series Trimless recessed downlight

1 2 3

Lighting Effects

Dapibus cras viverra magnis lectus quis placerat vel a.

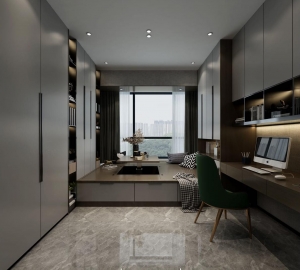

Applacation Emagery

Dapibus cras viverra magnis lectus quis placerat vel a.

Product Details

Flush mount installation on false ceilings of thickness 0.5-20 mm using torsion springs.
Body and heat sink in die-cast and extruded aluminum.

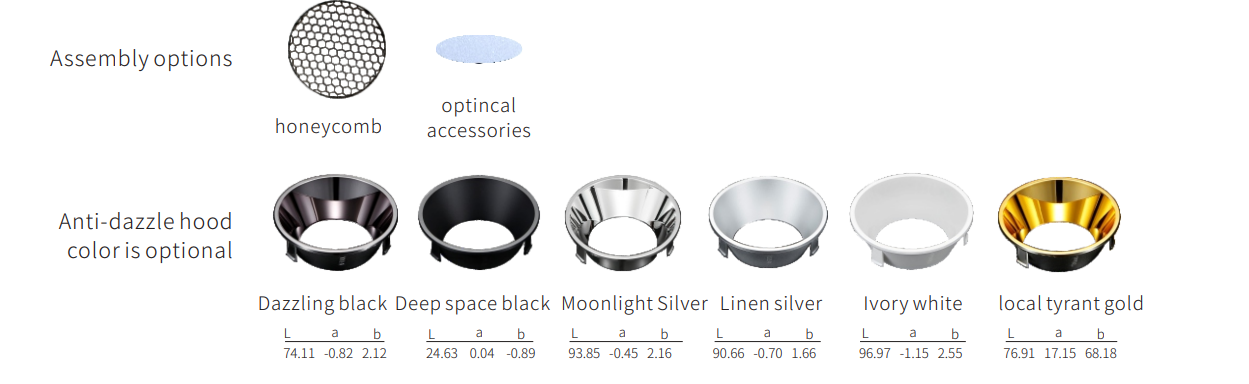

Reﬂector in metallic-ﬁnish thermoplastic material with scratch protection for excellent lighting efﬁciency and visual comfort.
Versions suitable for use in settings with UGR <19 video terminals, Super Comfort UGR <10 versions.
Modular design,easilyassembly&disassemblyandmaintance
Available with electronic wiring and DALI， Triac,0-10V & Zigbee
IP20
IP4４ on the visible body of the mount after installation (Minimal versions).

Specification

Model No.

Dimension

Cutout

Output Wattage

Source Current

Source voltage

Beam Angle

Color Temperature

Luminous Flux

CRI

Dimming

HDL5507TR

D86 x H106mm

Ø 75mm

200mA

31V

15°/25°/35°/50°

2.7K/3K/3.5K/4K/5K/6K

550lm

>90Ra

on-off / Triac dim/ 0-10V dim / Dali dim /Zigbee dim

HDL7510TR

D86 x H106mm

Ø 75mm

10W

300mA

31V

15°/25°/35°/50°

2.7K/3K/3.5K/4K/5K/6K

850lm

>90Ra

on-off / Triac dim/ 0-10V dim / Dali dim /Zigbee dim

HDL7512TR

D86 x H106mm

Ø 75mm

12W

300mA

31V

15°/25°/35°/50°

2.7K/3K/3.5K/4K/5K/6K

1000lm

>90Ra

on-off / Triac dim/ 0-10V dim / Dali dim /Zigbee dim

HDL9520TR

D86 x H106mm

Ø 75mm

20W

500mA

31V

15°/25°/35°/50°

2.7K/3K/3.5K/4K/5K/6K

1600lm

>90Ra

on-off / Triac dim/ 0-10V dim / Dali dim /Zigbee dim
