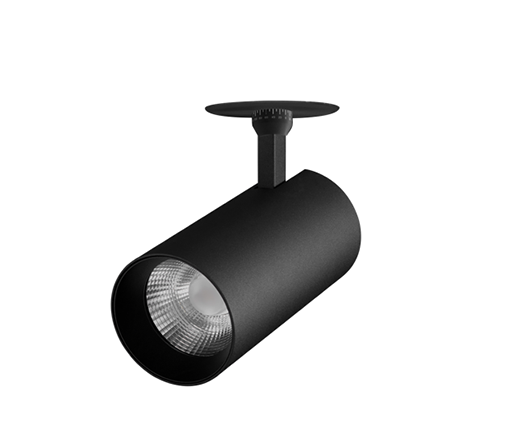

RC86 Recessed Spotlight Series

LED ceiling recessed spot light,originally researched and
developed by KWT, design inspiration from peopel’s double-eyelid eyes,
90mm diameter face cover, integrated molded lamp housing of CNC
aluminum, international top COB CITlZEN chip, plus KWT-oriented glare-
free reflector and KWT exclusive non-flicker driver, stable specifications,
glare-free, good heat sink, brilliant quality, more than 40,000 hours life
span.

1 2

Lighting Effects

Dapibus cras viverra magnis lectus quis placerat vel a.

Applacation Emagery

Hotel Lobby , Shopping mall , office , Stations ,and any high ceiling are all vailable .

Product Details

High Ra>90,LowSDCM<3
High efficacy, highilluminance, accurate beam anglemakes ofcomfortable illumination atmosphere
Rotatable horizontal 355° and vertical 90°, EasyInstallation, forwide applications
Refined components and design, guarantee a longlife span of over40,000 hours
User-centeredinstallation design, convenient andsimple us

Specification

Model	Dimension	Cutout	Output Wattage	Source Current	Source voltage	Beam Angle	Color Temperature	Luminous Flux	CRI
RC86	Ø86mm*L180mm	Ø86mm	30W	700mA	36V	12°/24°/36°/60°	2700k/3000k/4000k	2850lm-2945lm	Ra＞90
RC86	Ø86mm*L180mm	Ø86mm	35W	825mA	36V	12°/24°/36°/60°	2700k/3000k/4000k	3325lm-3420lm	Ra＞90
