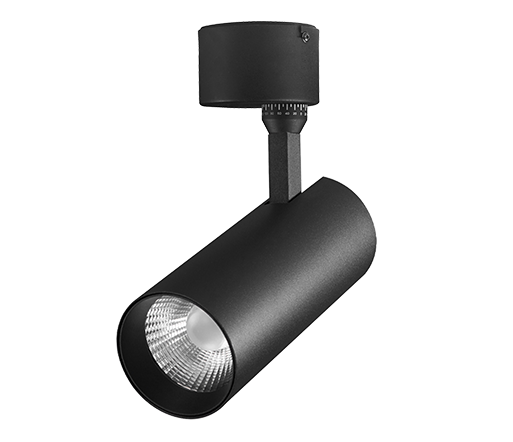

RM69 Surface Mounted Spotlight Series
LED ceiling recessed spot light,originally researched and
developed by KWT, design inspiration from peopel’s double-eyelid eyes,
90mm diameter face cover, integrated molded lamp housing of CNC
aluminum, international top COB CITlZEN chip, plus KWT-oriented glare-
free reflector and KWT exclusive non-flicker driver, stable specifications,
glare-free, good heat sink, brilliant quality, more than 40,000 hours life
span.
Lighting Effects
Dapibus cras viverra magnis lectus quis placerat vel a.
Applacation Emagery
Hotel Lobby , Shopping mall , office , Stations ,and any high ceiling are all vailable .
Product Details
- High Ra>90,LowSDCM<3
- High efficacy, highilluminance, accurate beam anglemakes ofcomfortable illumination atmosphere
- Rotatable horizontal 355° and vertical 90°, EasyInstallation, forwide applications
- Refined components and design, guarantee a longlife span of over40,000 hours
- User-centeredinstallation design, convenient andsimple us
Specification
Model | Dimension | Cutout | Output Wattage | Source Current | Source voltage | Beam Angle | Color Temperature | Luminous Flux | CRI | |
RM69 | Ø70mm*180mm | Ø70mm | 8W | 200mA | 36V | 12°/24°/36°/60° | 2700k/3000k/4000k | 470lm-650lm | Ra>90 | on-off / Triac dim/0-10V/DALI dim |
RM69 | Ø70mm*180mm | Ø70mm | 15W | 360mA | 36V | 12°/24°/36°/60° | 2700k/3000k/4000k | 1425lm-1520lm | Ra>90 | on-off / Triac dim/0-10V/DALI dim |
RM69 | Ø70mm*180mm | Ø70mm | 20W | 480mA | 36V | 12°/24°/36°/60° | 2700k/3000k/4000k | 1900lm-1995lm | Ra>90 | on-off / Triac dim/0-10V/DALI dim |
RM69 | Ø70mm*180mm | Ø70mm | 25W | 600mA | 36V | 12°/24°/36°/60° | 2700k/3000k/4000k | 2375lm-2470lm | Ra>90 | on-off / Triac dim/0-10V/DALI dim |
