Recessed Downlight Bulgari Series

Bulgari deep anti-glare ceiling spotlight, BDL5507G is an anti-glare spotlight independently designed and developed by KWT. It is composed of various opening sizes such as 55mm, 75mm, 95mm, etc., and has a family design, including round, square, and single head. , multi-headed and borderless styles. It adopts the international top quality COB light source, with various beam angles of 15°, 25°, 36°, and 50°. It can be matched with various optical accessories. It adopts a flicker-free high-quality driver and can be adapted to non-dimming, thyristor, and 0 -10V, DALI, PLC, ZIGBEE, Bluetooth and other different dimming control systems

1 2

Lighting Effects

Dapibus cras viverra magnis lectus quis placerat vel a.

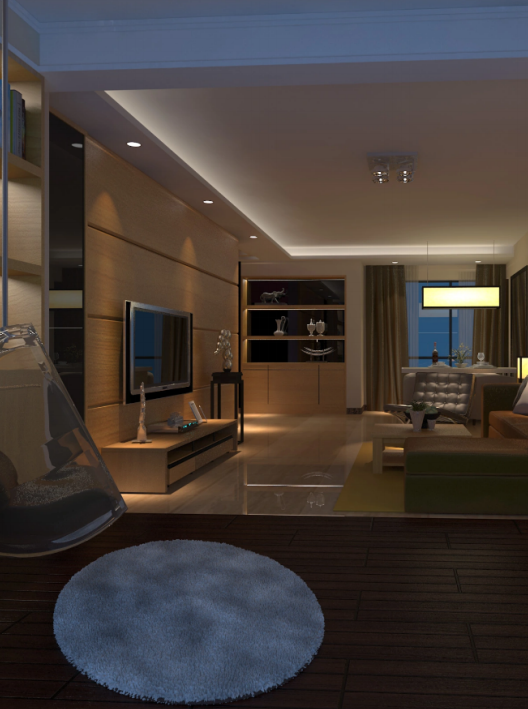

Applacation Emagery

Hotel Lobby , Shopping mall , office , Stations ,and any high ceiling are all vailable .

Product Details

Structure designed in deep anti-glare to ensure the UGR<10. It creates a comfortable light environment for people;
Reflecor has different colors and shapes for options ,it meet any decoration and light distribution requirments.
The fixture head has adjustable funcation of adjust angle at vertical is 0-25 degrees, and horizontal is 350 degrees;
Modular structure for easy assembly, installation and disassembly;
Long life span more than 50000hrs .

Specification

BDL1105514	L130H75W69mm	60*125mm	14W	380mA	31V/DC	15°/24°/36°/50°	2700K-6000K	67Lm/w*14W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDL1105514-TR	L116H75W65mm	60*125mm	14W	380mA	31V/DC	15°/24°/36°/50°	2700K-6000K	67Lm/w*14W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDL1655521	L171H78W64mm	55*170mm	21W	580mA	31V/DC	15°/24°/36°/50°	2700K-6000K	67Lm/w*21W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDL1655521-TR	L161H78W54mm	54*161mm	21W	580mA	31V/DC	15°/24°/36°/50°	2700K-6000K	67Lm/w*21W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDL11011028	L117*H78	110*110mm	28W	760mA	31V/DC	15°/24°/36°/50°	2700K-6000K	67Lm/w*28W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDLS1507524	L180H91W91mm	85*165mm	24W	650mA	31V/DC	15° /24°/36°/ 50°	2700K-6000K	67Lm/w*24W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDLS1507524-TR	L163*H91	75*155mm	24W	650mA	31V/DC	15° /24°/36°/ 50°	2700K-6000K	67Lm/w*24W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDLS2257536	L232H91W85mm	75*230mm	36W	980mA	31V/DC	15° /24°/36°/ 50°	2700K-6000K	67Lm/w*36W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDLS2257536-TR	L221H91W74mm	75*230mm	36W	980mA	31V/DC	15° /24°/36°/ 50°	2700K-6000K	67Lm/w*36W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
BDLS15015048	L158*H91	150*150mm	48W	1310mA	31V/DC	15° /24°/36°/ 50°	2700K-6000K	67Lm/w*48W	Ra＞90/97	on-off /0-10V dim /Triac dim/Dali
