Lighting Effects
Diffuser linear , creat flood light in different length
Applacation Emagery
Home , hotel , resturant , shoppes ,office
![25](https://kwtled.com/wp-content/uploads/2022/06/别墅-25.jpg)
Product Details
- Low voltage 24V magnetic system with professional luminaires for commercial and residential applications. The track is designed for ceiling, wallor pendant application. Perfect for retail and hospitality environments.
- The light is aimed and uses our patented Opti Beam technology.
- The light hold into track by magnetic and safety lock. No wiring to save installation charge.
- Smart control system in booth wire system DALI,0-10V&wireless Ziggbee 2.4G dimmable and CCT charges are all available.
Specification
Model | Dimension | Output Wattage | Source Current | Source voltage | Beam Angle | Color Temperature | Luminous Flux | CRI | Dimming |

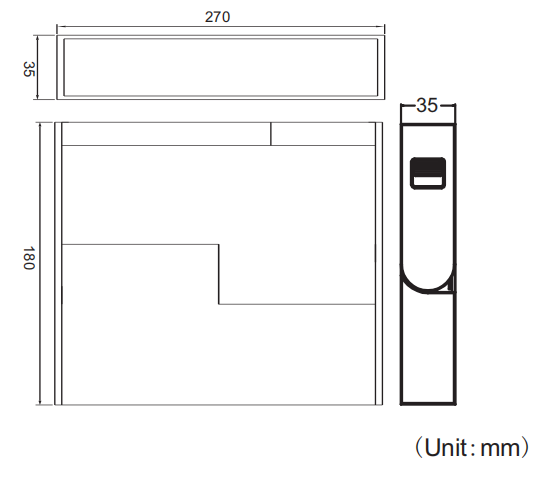

MGL300 | L270*W35*H180mm | 10W | 420mA | 24VDC | Diffuse | 2700K-6000K | 805lm | >90Ra | on-off /0-10V dim /Zigbee dim/DALI dim |

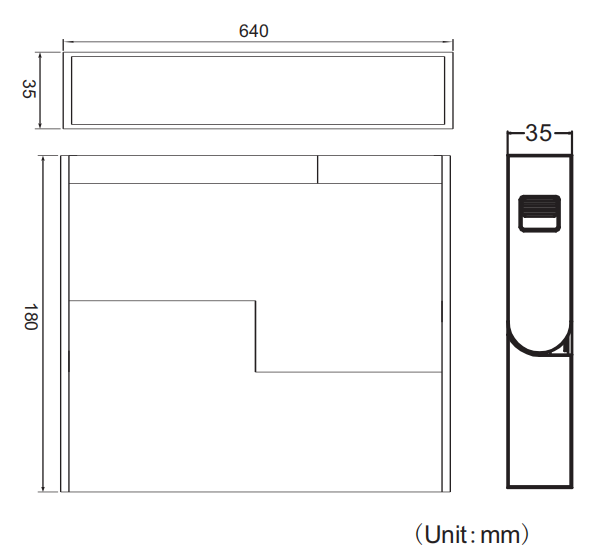

MGL640 | L640*W35*H180mm | 20W | 840mA | 24VDC | Diffuse | 2700K-6000K | 1595lm | >90Ra | on-off /0-10V dim /Zigbee dim/DALI dim |
