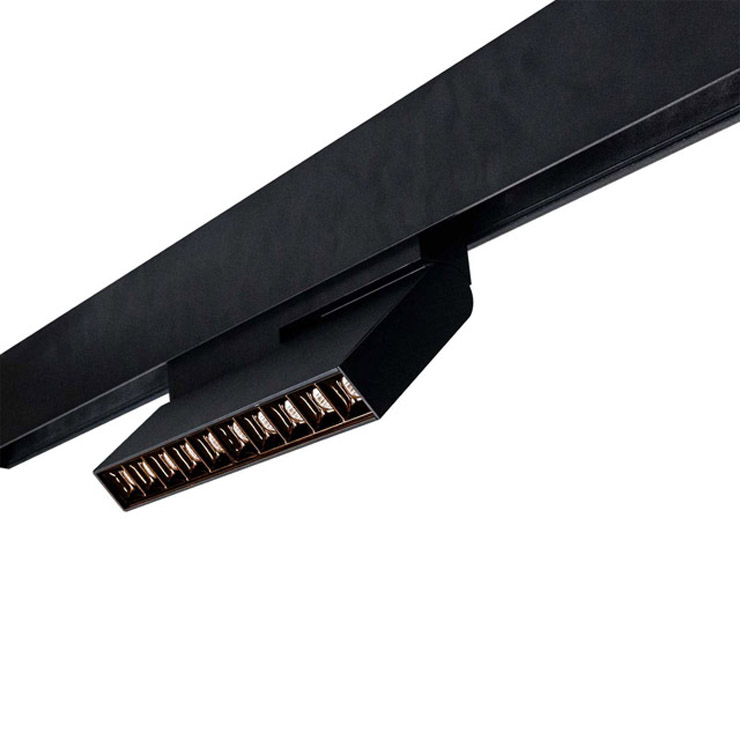

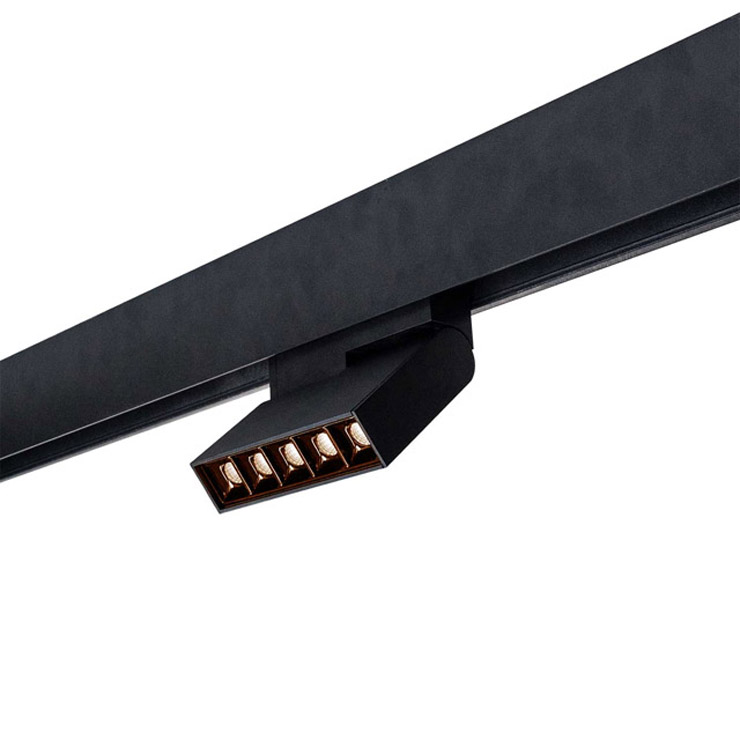

V3.0 Adjustable accent magnetic linear lamp

Lighting Effects

Adjustable accent linear , creat powerful light in different length

Home , hotel , resturant , shoppes ,office

Low voltage 24V magnetic system with professional luminaires for commercial and residential applications. The track is designed for ceiling, wallor pendant application. Perfect for retail and hospitality environments. The light is aimed and uses our patented Opti Beam technology.
The light hold into track by magnetic and safety lock. No wiring to save installation charge.
Smart control system in booth wire system DALI,0-10V&wireless Ziggbee 2.4G dimmable and CCT charges are all available.

Model	Dimension	Output Wattage	Source Current	Source voltage	Beam Angle	Color Temperature	Luminous Flux	CRI	Dimming
MGS03	L94W35H180mm	3*1W	130mA	24VDC	15/30/45D	2700K-6000K	216lm	>90Ra	on-off /0-10V dim /Zigbee dim/DALI dim
MGS05	L137W35H180mm	5*1W	210mA	24VDC	15/30/45D	2700K-6000K	492lm	>90Ra	on-off /0-10V dim /Zigbee dim/DALI dim
MGS10	L270W35H180mm	10*1W	420mA	24VDC	15/30/45D	2700K-6000K	794lm	>90Ra	on-off /0-10V dim /Zigbee dim/DALI dim
MGS03	L94W35H180mm	3*2W	250mA	24VDC	15/30/45D	2700K-6000K	460lm	>90Ra	on-off /0-10V dim /Zigbee dim/DALI dim
MGS05	L137W35H180mm	5*2W	420mA	24VDC	15/30/45D	2700K-6000K	836lm	>90Ra	on-off /0-10V dim /Zigbee dim/DALI dim
MGS10	L270W35H180mm	10*2W	840mA	24VDC	15/30/45D	2700K-6000K	1600lm	>90Ra	on-off /0-10V dim /Zigbee dim/DALI dim
