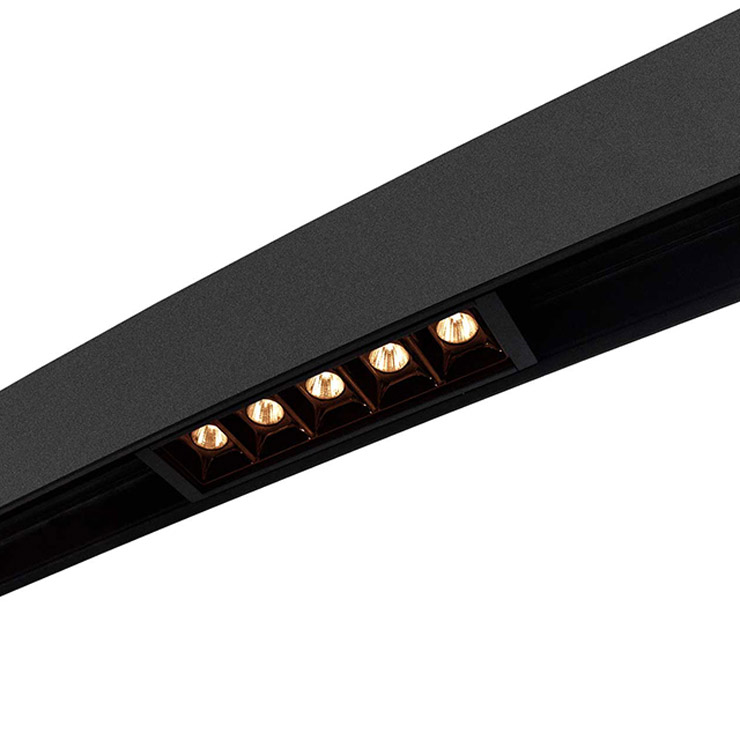

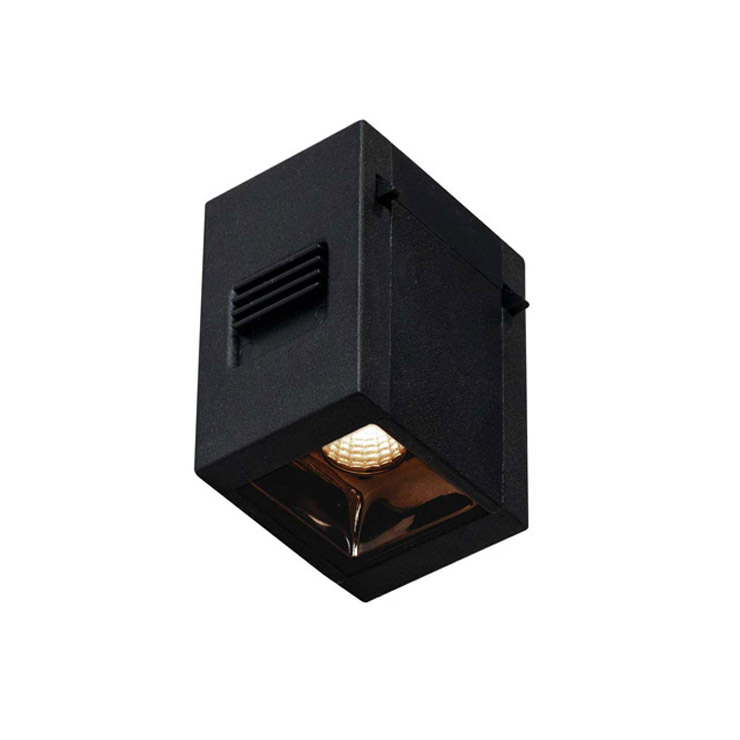

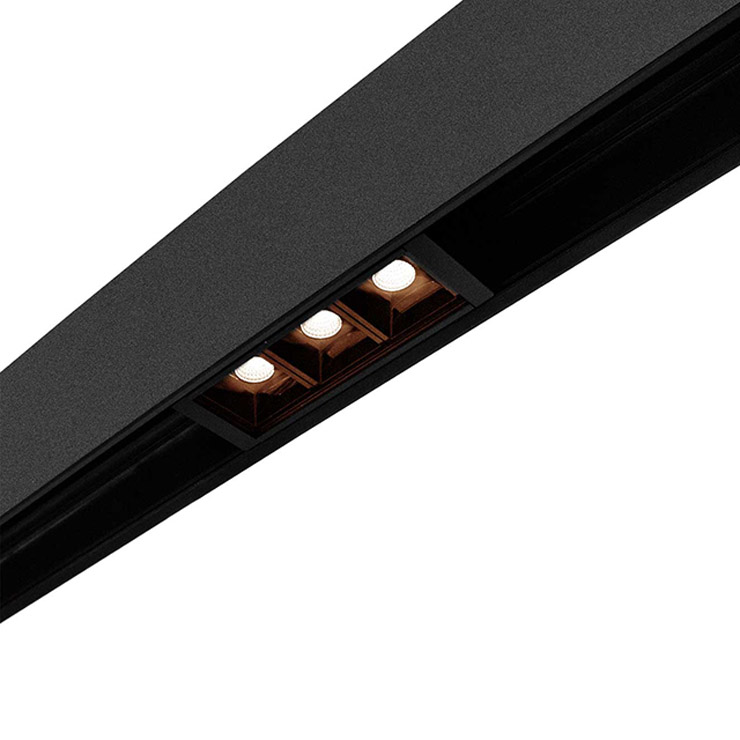

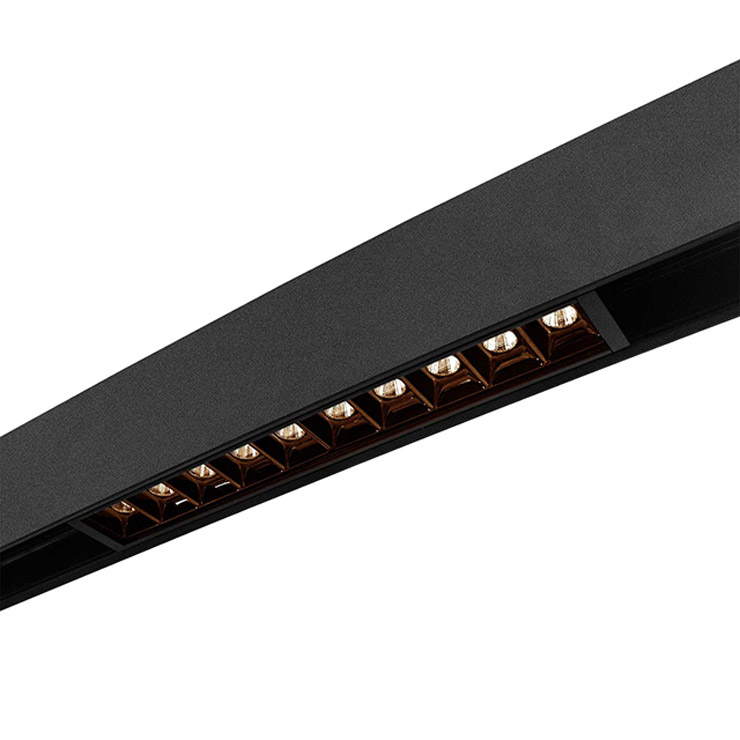

V3.0 Magnetic accent linear lamp

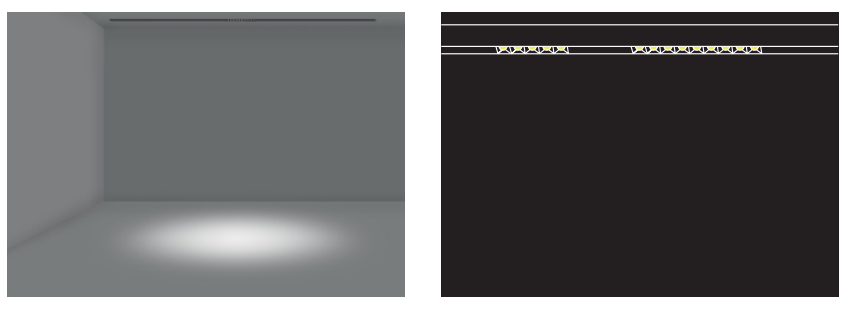

Lighting Effects

Magnetic accent linear , creat powerful light in different length

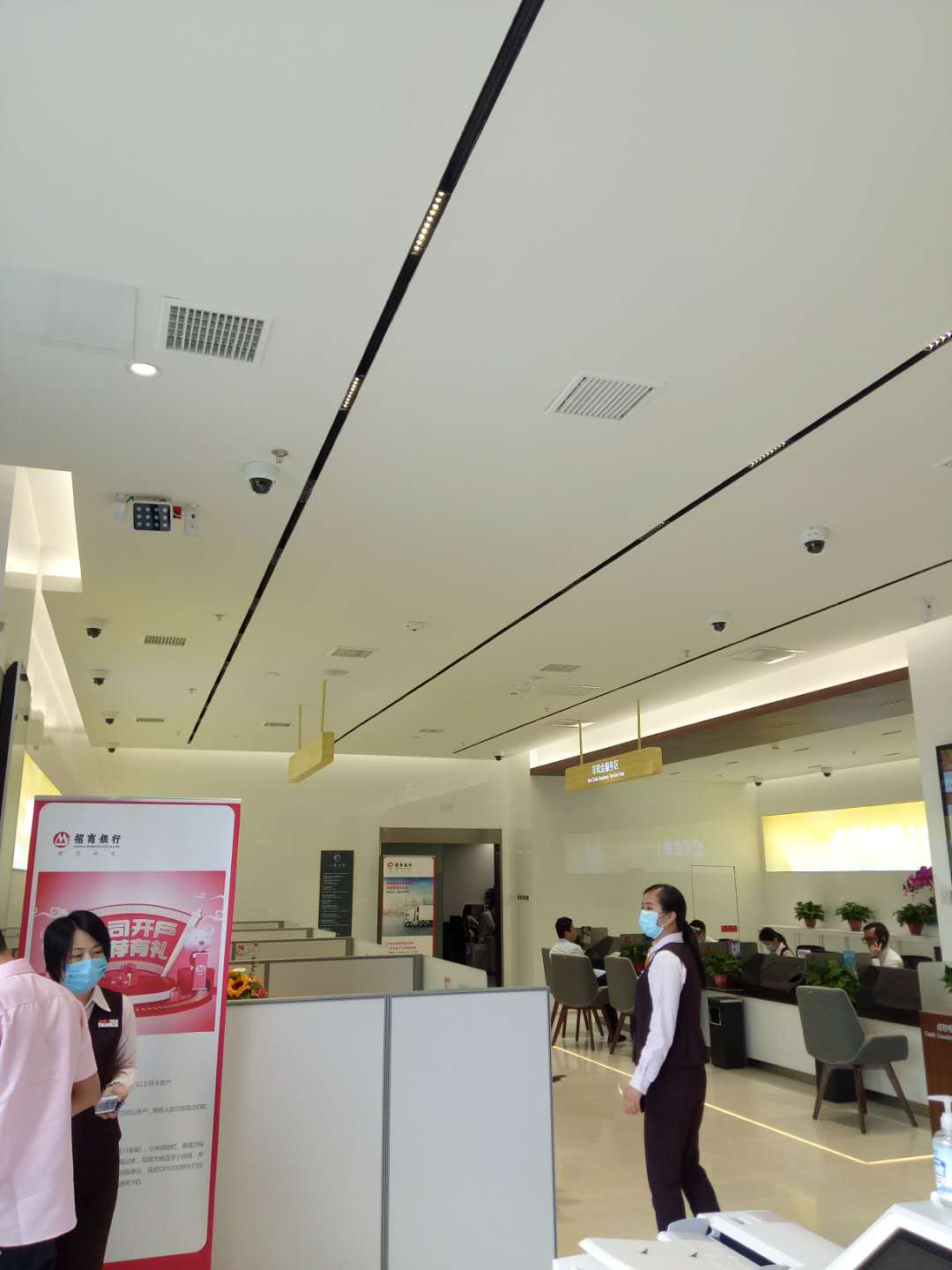

Home , hotel , resturant , shoppes ,office

Low voltage 24V magnetic system with professional luminaires for commercial and residential applications. The track is designed for ceiling, wallor pendant application. Perfect for retail and hospitality environments. The light is aimed and uses our patented Opti Beam technology.
The light hold into track by magnetic and safety lock. No wiring to save installation charge.
Smart control system in booth wire system DALI,0-10V&wireless Ziggbee 2.4G dimmable and CCT charges are all available.

Model	Dimension	Output Wattage	Source Current	Source voltage	Beam Angle	Color Temperature	Luminous Flux	CRI	Dimming
MLS01	L45W35H59mm	1*1W	42mA	24VDC	15/30/45D	2700K-6000K	75lm	>90Ra	on-off /0-10V dim /Zigbee dim/DALI dim
MLS03	L106W35H59mm	3*1W	130mA	24VDC	15/30/45D	2700K-6000K	200lm	>90Ra	on-off /0-10V dim /Zigbee dim/DALI dim
MLS05	L148W35H59mm	5*1W	210mA	24VDC	15/30/45D	2700K-6000K	420lm	>90Ra	on-off /0-10V dim /Zigbee dim/DALI dim
MLS10	L280W35H59mm	10*1W	420mA	24VDC	15/30/45D	2700K-6000K	800lm	>90Ra	on-off /0-10V dim /Zigbee dim/DALI dim
MLS03	L106W35H59mm	3*2W	250mA	24VDC	15/30/45D	2700K-6000K	367lm	>90Ra	on-off /0-10V dim /Zigbee dim/DALI dim
MLS05	L148W35H59mm	5*2W	420mA	24VDC	15/30/45D	2700K-6000K	836lm	>90Ra	on-off /0-10V dim /Zigbee dim/DALI dim
MLS10	L280W35H59mm	10*2W	840mA	24VDC	15/30/45D	2700K-6000K	1349lm	>90Ra	on-off /0-10V dim /Zigbee dim/DALI dim
