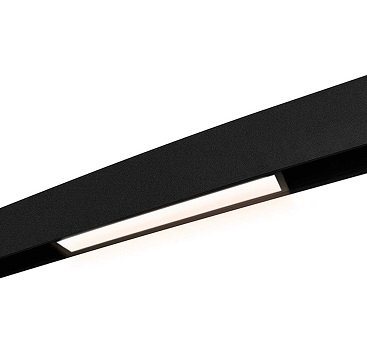

V3.0 Magnetic general linear light

Lighting Effects

Diffuser linear , creat flood light in different length

Home , hotel , resturant , shoppes ,office

Low voltage 24V magnetic system with professional luminaires for commercial and residential applications. The track is designed for ceiling, wallor pendant application. It is 35mm wide, Perfect for retail and hospitality environments. The light is aimed and uses our patented Opti Beam technology.
The light hold into track by magnetic and safety lock. No wiring to save installation charge.
Smart control system in booth wire system DALI,0-10V&wireless Ziggbee 2.4G dimmable and CCT charges are all available.

Model	Dimension	Output Wattage	Source Current	Source voltage	Beam Angle	Color Temperature	Luminous Flux	CRI	Dimming

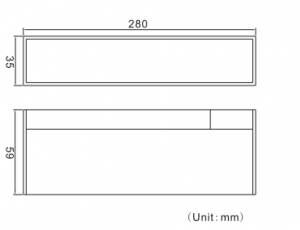

MLL300	L280W35H59mm	10W	420mA	24VDC	120D	2700K-6000K	905lm	>90Ra	on-off /0-10V dim /Zigbee dim/DALI dim

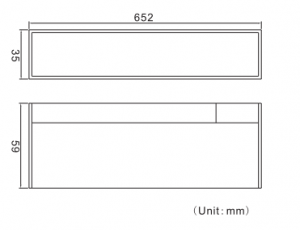

MLL640	L652W35H59mm	20W	840mA	24VDC	120D	2700K-6000K	1600lm	>90Ra	on-off /0-10V dim /Zigbee dim/DALI dim

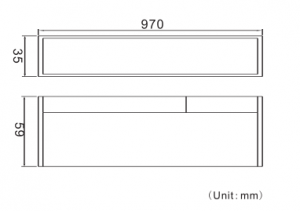

MLL960	L970W35H59mm	30W	1250mA	24VDC	120D	2700K-6000K	2420lm	>90Ra	on-off /0-10V dim /Zigbee dim/DALI dim
